5 Gallons Water Filling Machine Automatic Bottle Drinking Water Production Line

5 Gallons Water Filling Machine Automatic Bottle Drinking Water Production Line

Automatic 5-gallon water filling machine for bottled drinking water production lines. Ensures efficient, precise, and hygienic filling, capping, and labeling for large-scale water bottling operations.

Contact

Description

product 5 gallons water filling machine automatic bottle drinking water production line-4

+8613616242830

[email protected]

Description

Products Description

5 Gallons Water Filling Machine Automatic Bottle Drinking Water Production Line details

Automatic Bottled Water Production Line For Pure Water or Mineral Water

*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine /Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system

Technical parameter : water filling machine

Model

QGF-150

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Capacity(for 5 gallon)

60-150bph

300bph

450bph

600bph

900bph

1200bph

Suitable bottle shapes

PET circular or square

Bottle volume

3 & 5 Gallon

Air consumption

0.37 m3/min

Compressor air

0.3-0.7Mpa

Rinsing pressure

>0.06Mpa <0.2Mpa

Application

5gallon water production plant

Total power (KW)

1.5kw

3.8kw

4.5kw

5.2kw

6.2kw

7.8kw

Overall dimensions

2.3*1.9m

2.5*1.9m

2.8*2.15m

3.1*2.5m

3.8*2.8m

4.5*3.3m

Height

1.8m

2.2m

2.3m

2.5m

2.6m

Weight(kg)

800kg

1500kg

2000kg

2500kg

2800kg

3500kg

Description:

The filling line specially for 3-5 gallons barreled drinking water ,with type
QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.

It integrateds bottle washing,filling and capping into one unit,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

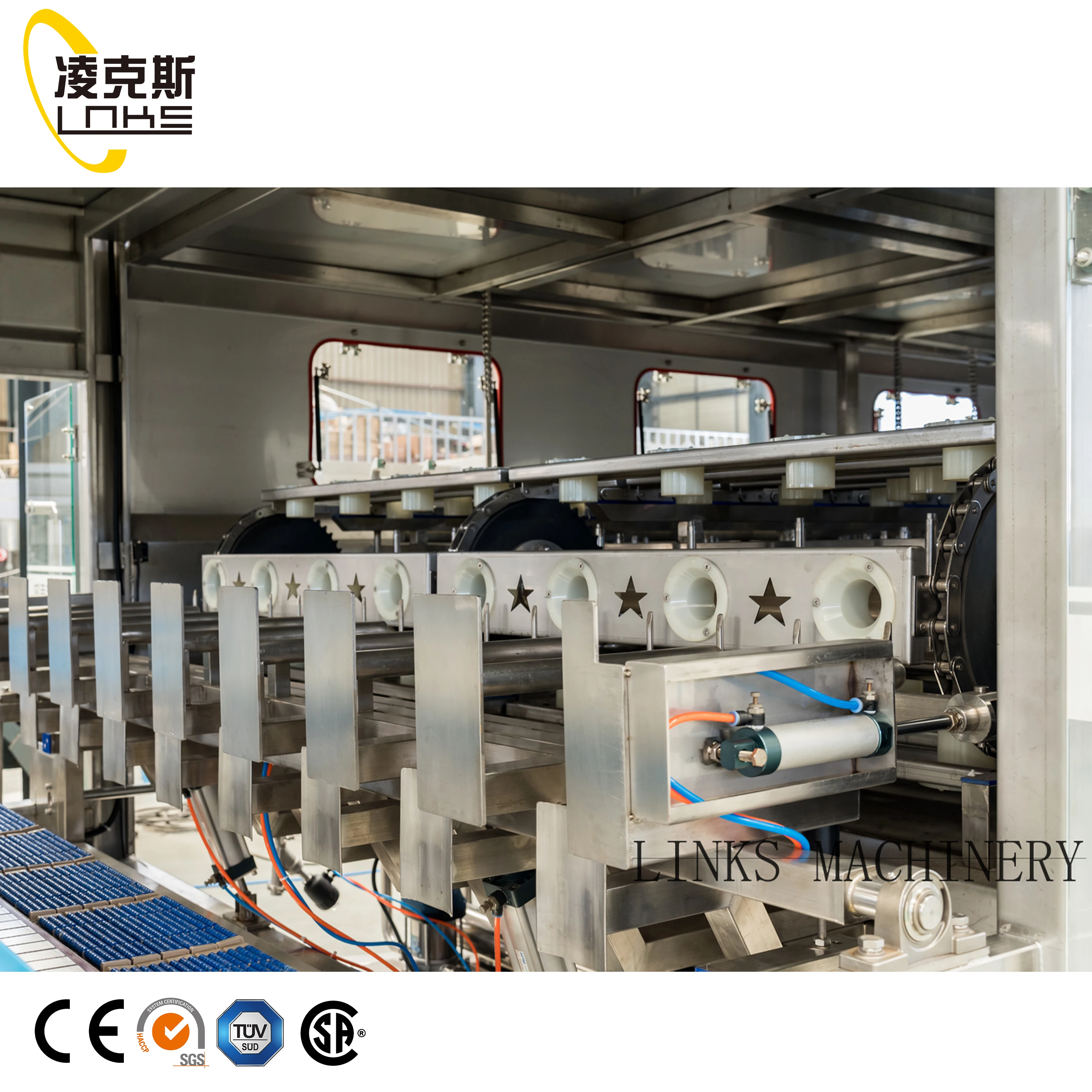

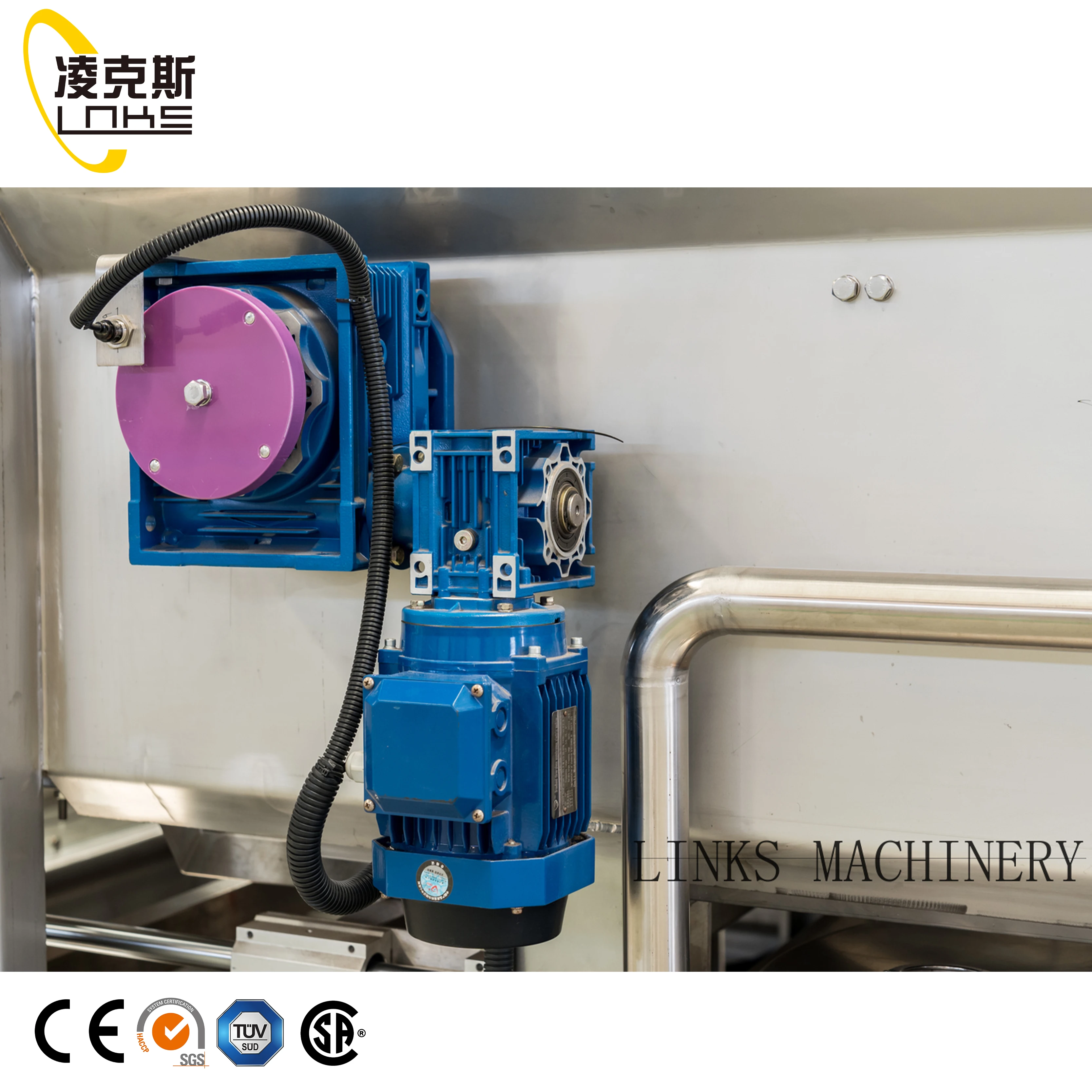

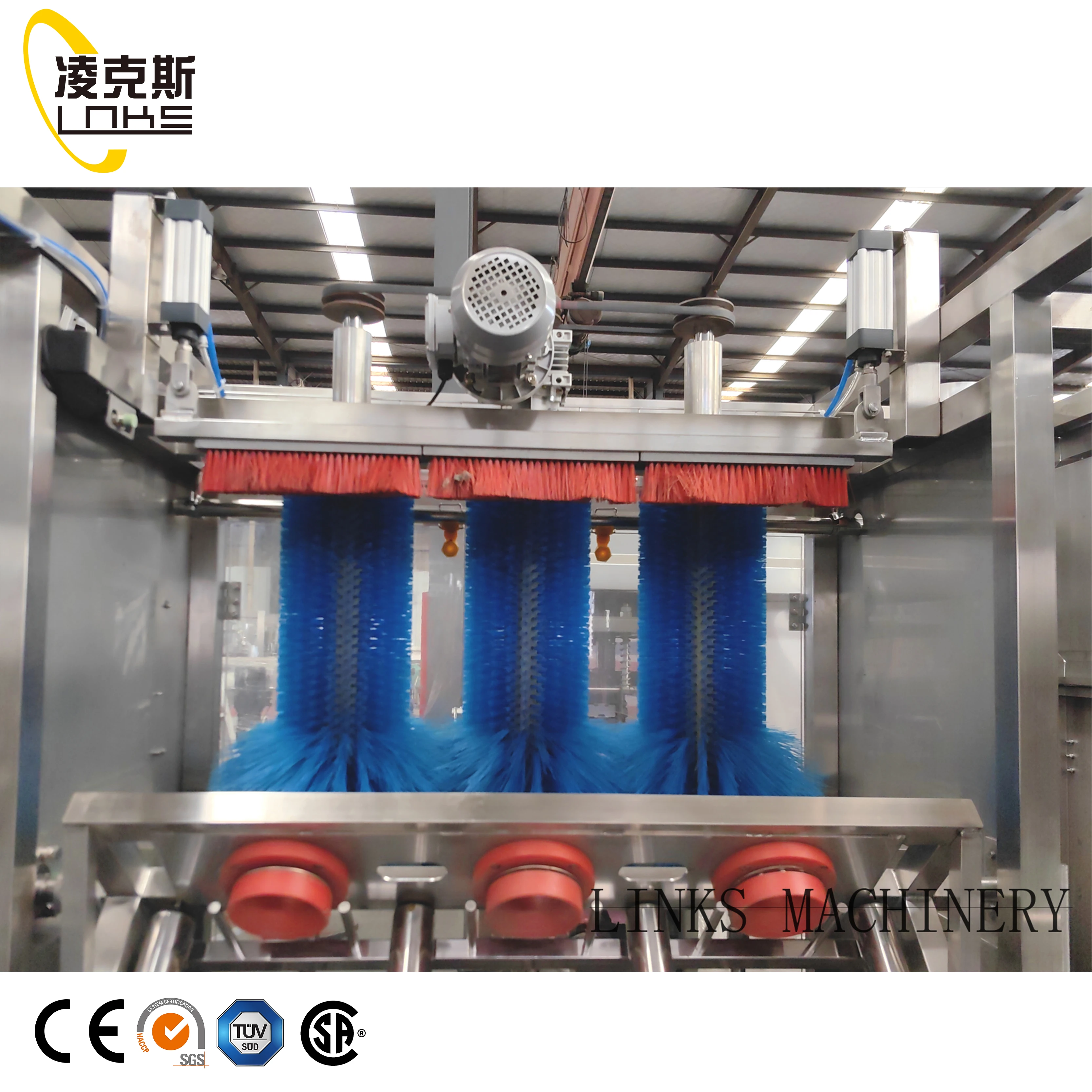

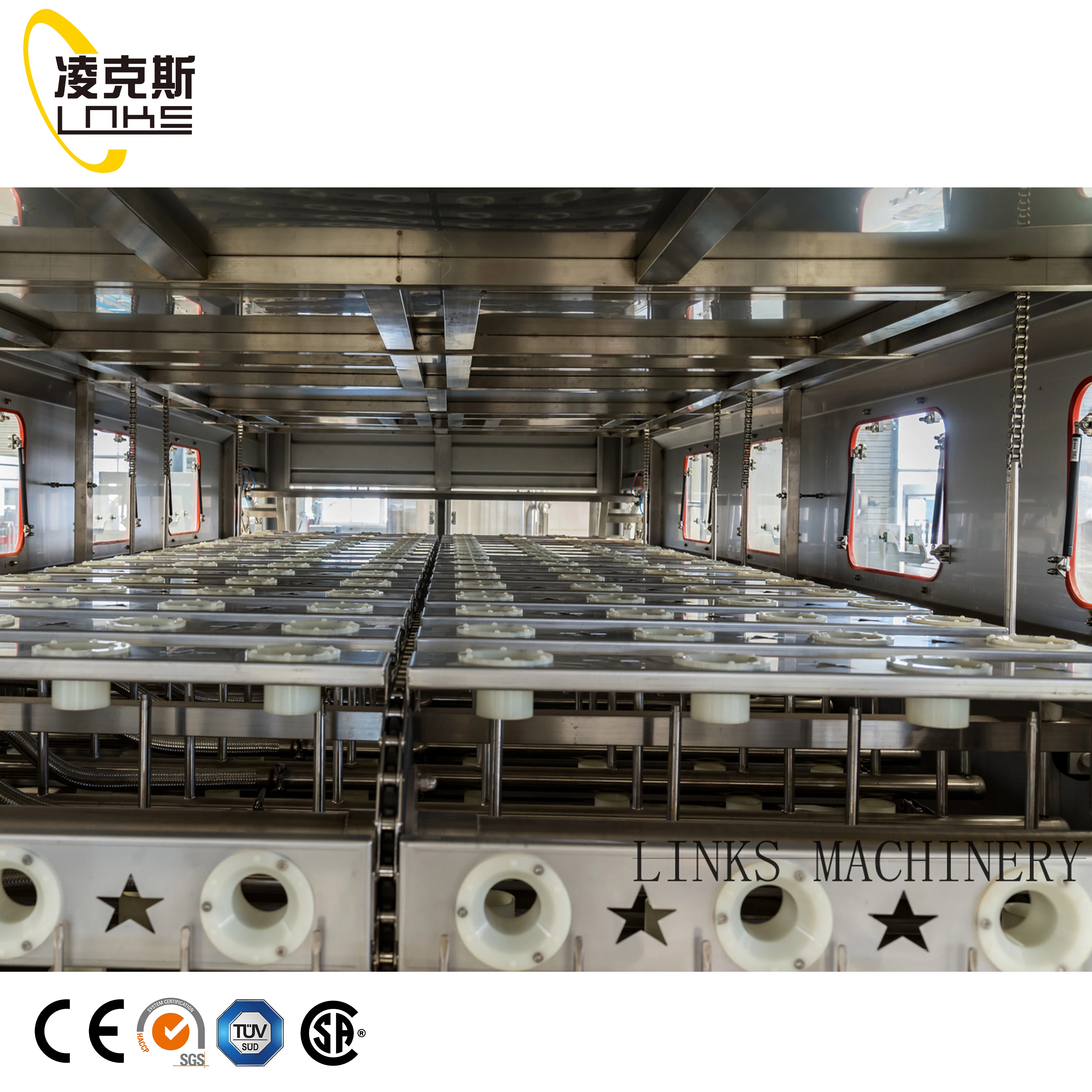

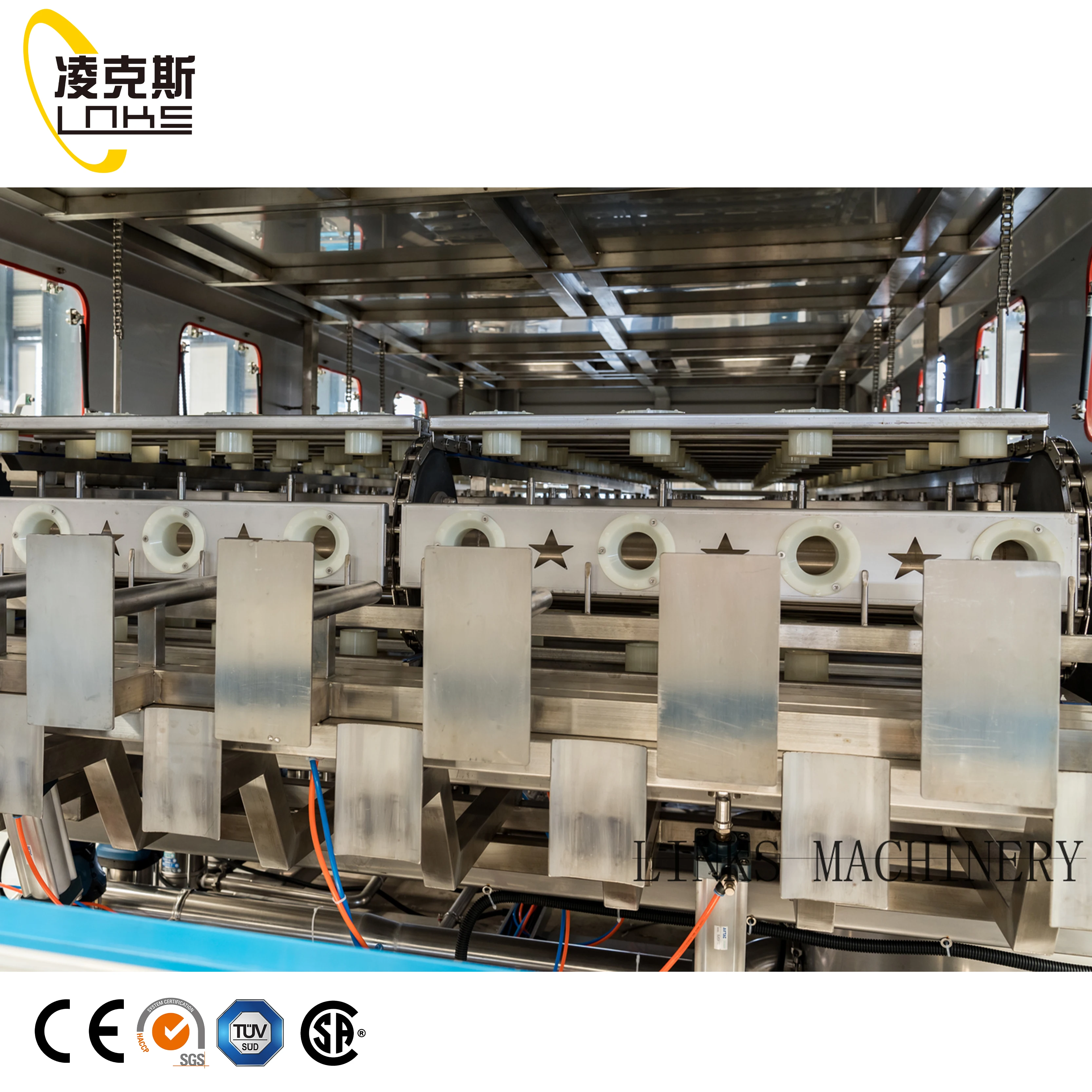

Details Images

5 Gallons Water Filling Machine Automatic Bottle Drinking Water Production Line factory

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.

Main Features *Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. * Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. * The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. *High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss. *Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. *Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

As customer request and market demand, we provide the better solution for the final product package,We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label ,and packing machine have the film shrink machine and carton box package.

5 Gallons Water Filling Machine Automatic Bottle Drinking Water Production Line manufacture

We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
