Home > Product > Water Filling Machine > 3-10L Water Filling Machine

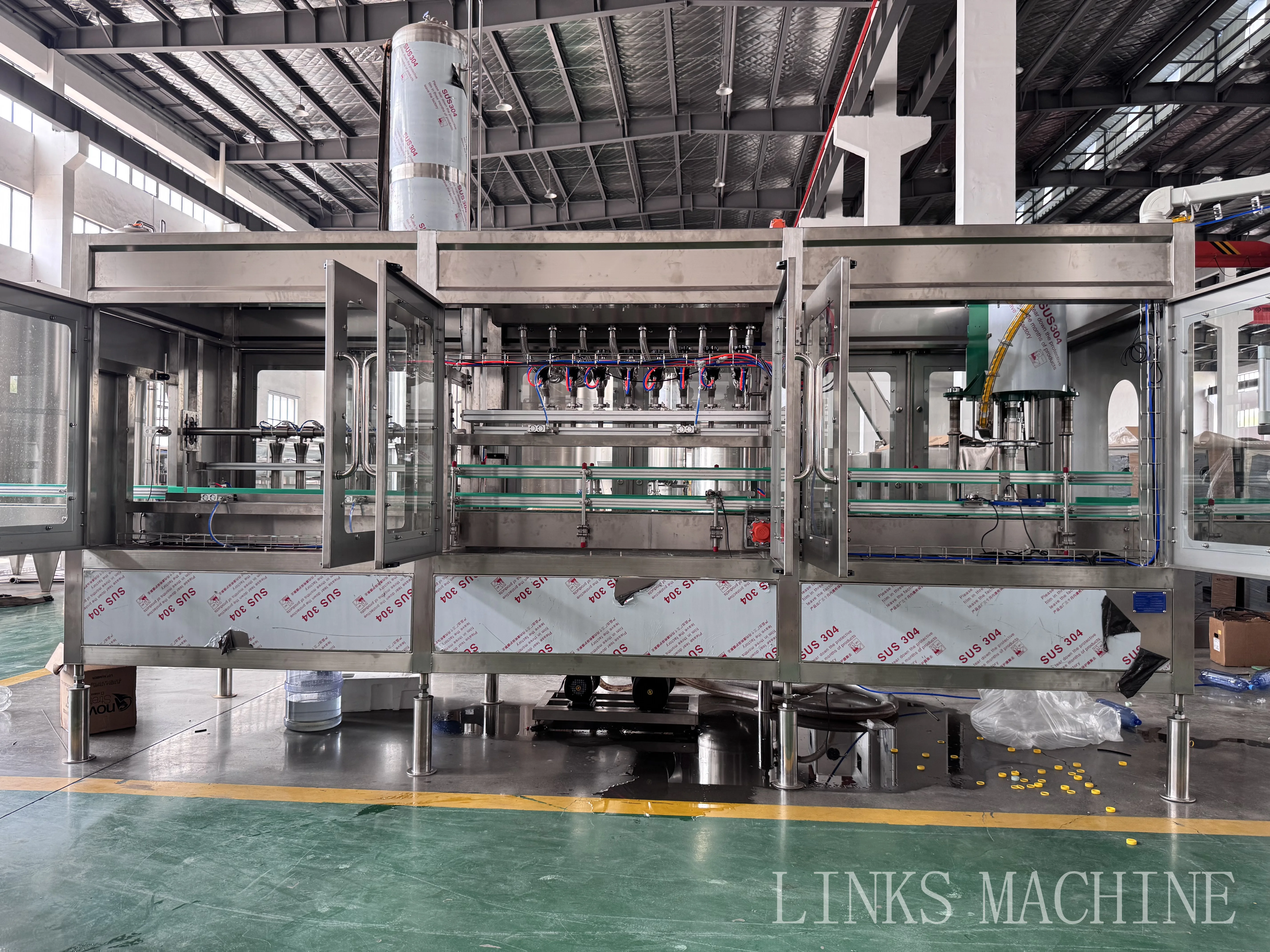

Automatic 5-litre water filling machine for plastic bottles. Ensures precise, efficient, and hygienic filling, ideal for small to medium-scale bottled water production lines.
Technical parameter : water bottling plant sale |
||||||||||||
Model |
CGF8-8-3 |
CGF14-12-4 |
CGF18-18-6 |
CGF24-24-6 |
CGF32-32-8 |
CGF40-40-10 |
||||||
Capacity(for 500ml) |
2000 |
3000-4000 |
6000-8000 |
8000-12000 |
13000-15000 |
16000-18000 |
||||||
Suitable bottle shapes |
PET circular or square |
|||||||||||
Bottle diameter(mm) |
Dia50-Dia115mm |
|||||||||||
Bottle height (mm) |
160-320mm |
|||||||||||
Compressor air |
0.3-0.7Mpa |
|||||||||||
Washing meidium |
Aseptic water |
|||||||||||
Rinsing pressure |
>0.06Mpa <0.2Mpa |
|||||||||||
Application |
water bottling plant sale |
|||||||||||
Total power (KW) |
4.4kw |
4.4kw |
4.4kw |
5.2kw |
6.2kw |
7.8kw |
||||||
Overall dimensions |
2.3*1.9m |
2.5*1.9m |
2.8*2.15m |
3.1*2.5m |
3.8*2.8m |
4.5*3.3m |
||||||
Height |
2.3m |
2.5m |
2.5m |
2.5m |
2.5m |
2.6m |
||||||
Weight(kg) |
2500kg |
3200kg |
4000kg |
4500kg |
6500kg |
8000kg |
||||||
This machine is specially designed for the filling of pure water, mineral water and other non-gas and sugar free beverages in bottles, it is an integrated equipment for bottle washing, filling and capping.
According to customer's water source analysis report and the final water standard required, we will suggest customer to choose the suitable water treatment plants, help to reduce the material consumption and maintenance cost.
According to customer request and market demand, we provide the better solution for the final product package design, we have various kinds of options, like PVC sleeve label, BOPP hot glue label, adhesive stick label, cold glue paper label.
We supply the different bottle package design, film package, carton box wrapper, film with tray package and so on...
We supply the complete bottle blowing system, start from PET preform injection molding machine, and bottle blowing machine, including air compressor system and water cooling system.
Flow Chart :Complete Water Filling Line Project
![H7a90725ba9e34a5885331789c6ff8db0P[1].jpg](https://shopcdnpro.grainajz.com/category/14864/3977/0e58e32453213a1a6fa5bdb1695429f4/H7a90725ba9e34a5885331789c6ff8db0P%5B1%5D.jpg)
