Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine

Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine

Beer can filling line for aluminium cans. Integrates rinsing, filling, and sealing, ensuring high-speed, precise, and hygienic packaging for efficient beer production.

Get a Quote Contact
  • Description
product automatic beer glass production plant alcoholic beverage rinsing filling capping machine-4

+8613616242830
[email protected]
Inquiry
Products Description
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine factory

High Quality Glass Bottle Beer Filling Machine / Bottling Equipment

*We supply complete solution for the beer production line ,including Beer filling machine (Rinsing,filling capping 3in1) ,
Beer cold glue labeling system ,beer film packaging machine & carton box packing machine ,also can supply the beer processing system ,like saccharification system & filteration system ,and fermentation and storage system
Technical parameter :Beer Filling Machine
Model
BXGF12-12-1
BXGF12-12-4
BXGF18-18-6
BXGF24-24-8
BXGF32-32-10
BXGF40-40-12
Capacity (for 500ml)
500bph
1000bph
1500bph
3000bph
6000bph
10000bph
Suitable bottle
Glass Bottle / PET Bottle
Bottle volume
200ml ~ 1L
Compressor air
0.3-0.7Mpa
Air consumption
0.37 m3/min
Rinsing pressure
>0.06Mpa <0.2Mpa
Application
Beer filling machine
Total power (KW)
1.2kw
3.6kw
4.8kw
5.8kw
6.2kw
7.8kw
Overall dimensions
2.3*1.9m
2.5*1.9m
2.8*2.15m
3.1*2.5m
3.8*2.8m
4.5*3.3m
Height
1.8m
2m
2.2m
2.3m
2.5m
2.6m
Weight(kg)
800kg
2000kg
3000kg
4500kg
8000kg
12000kg

Introduction:

This beer filling machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability,improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
Details Images

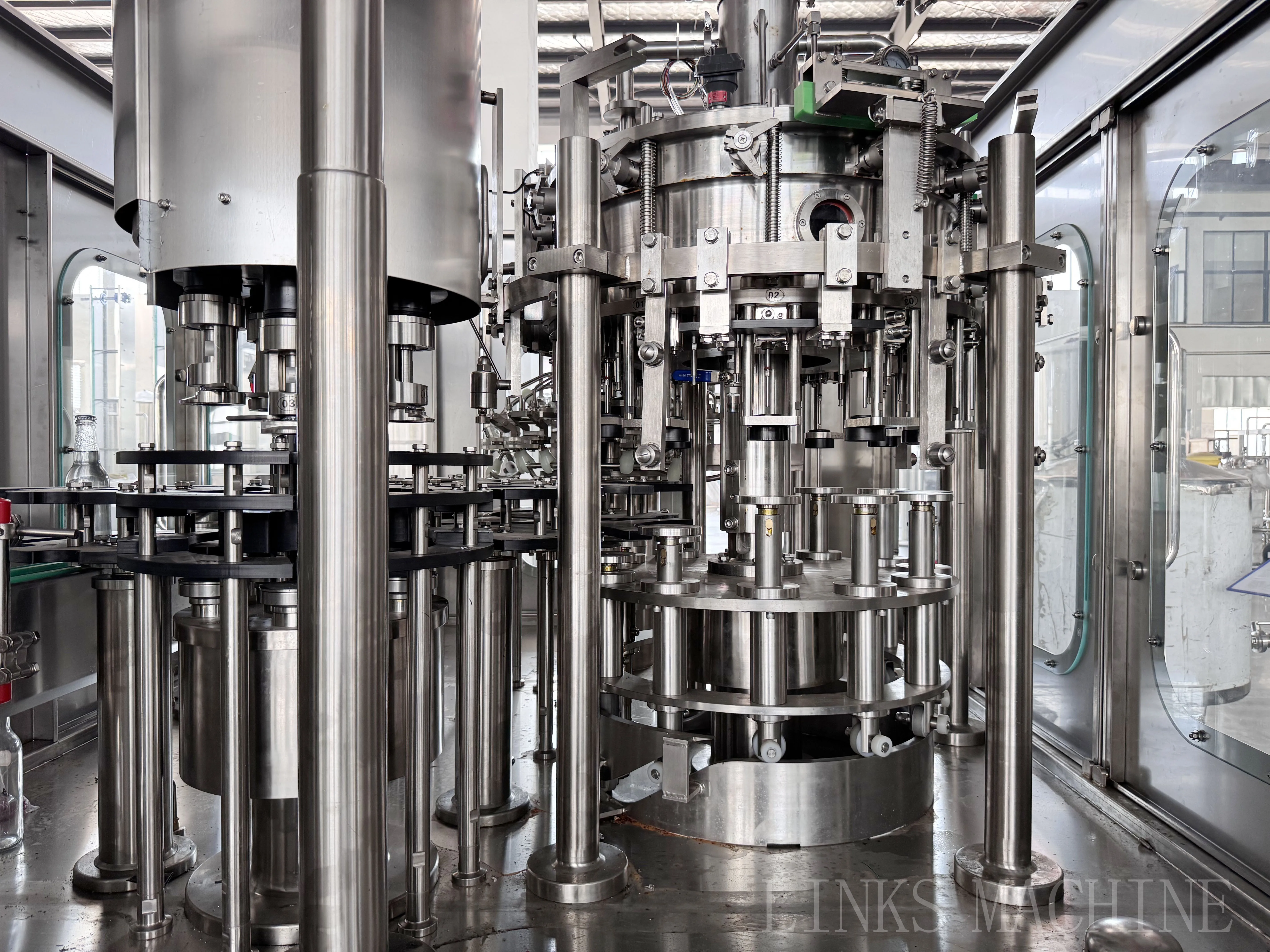

Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine supplier

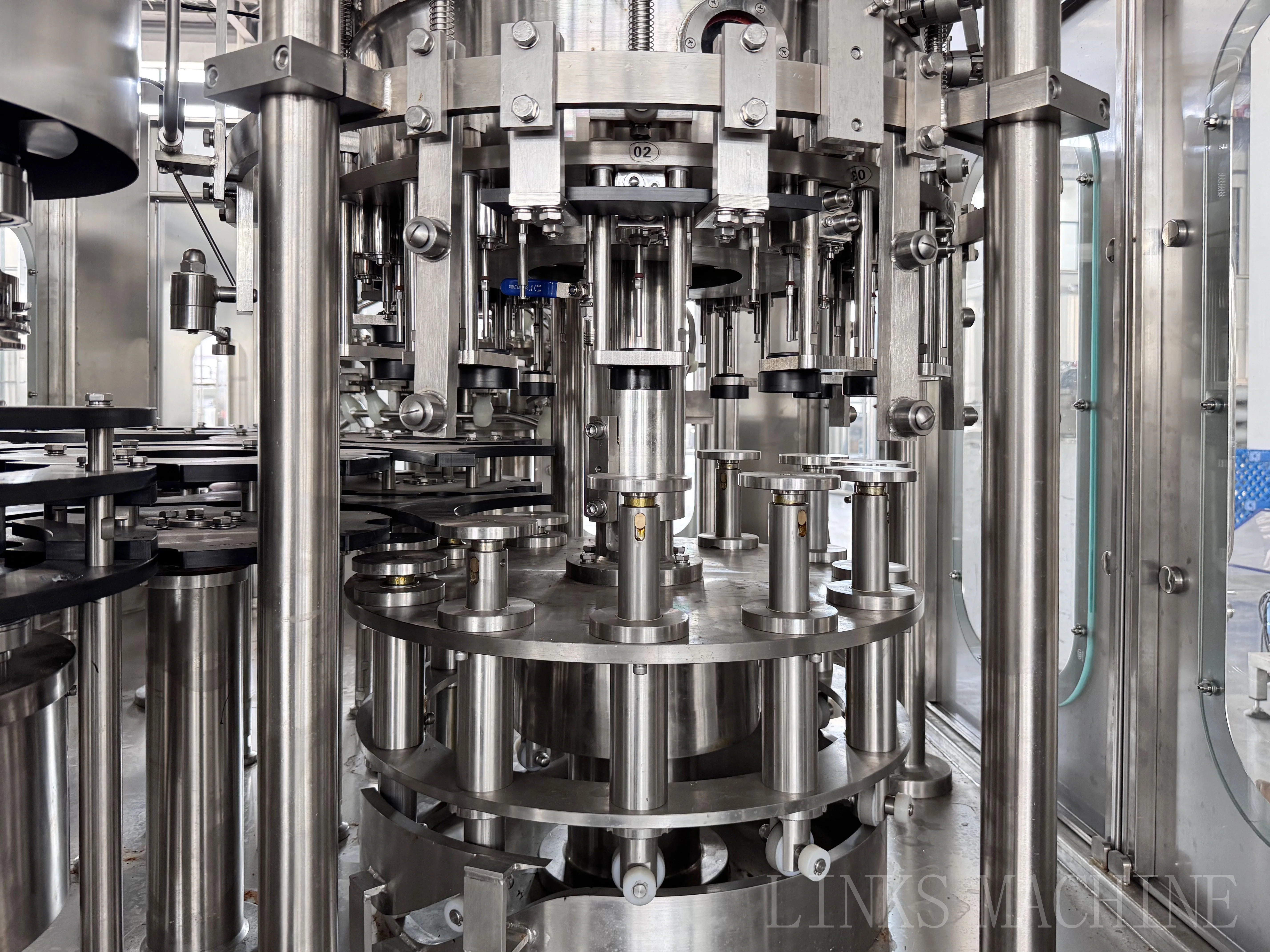

Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine manufacture

Main Features

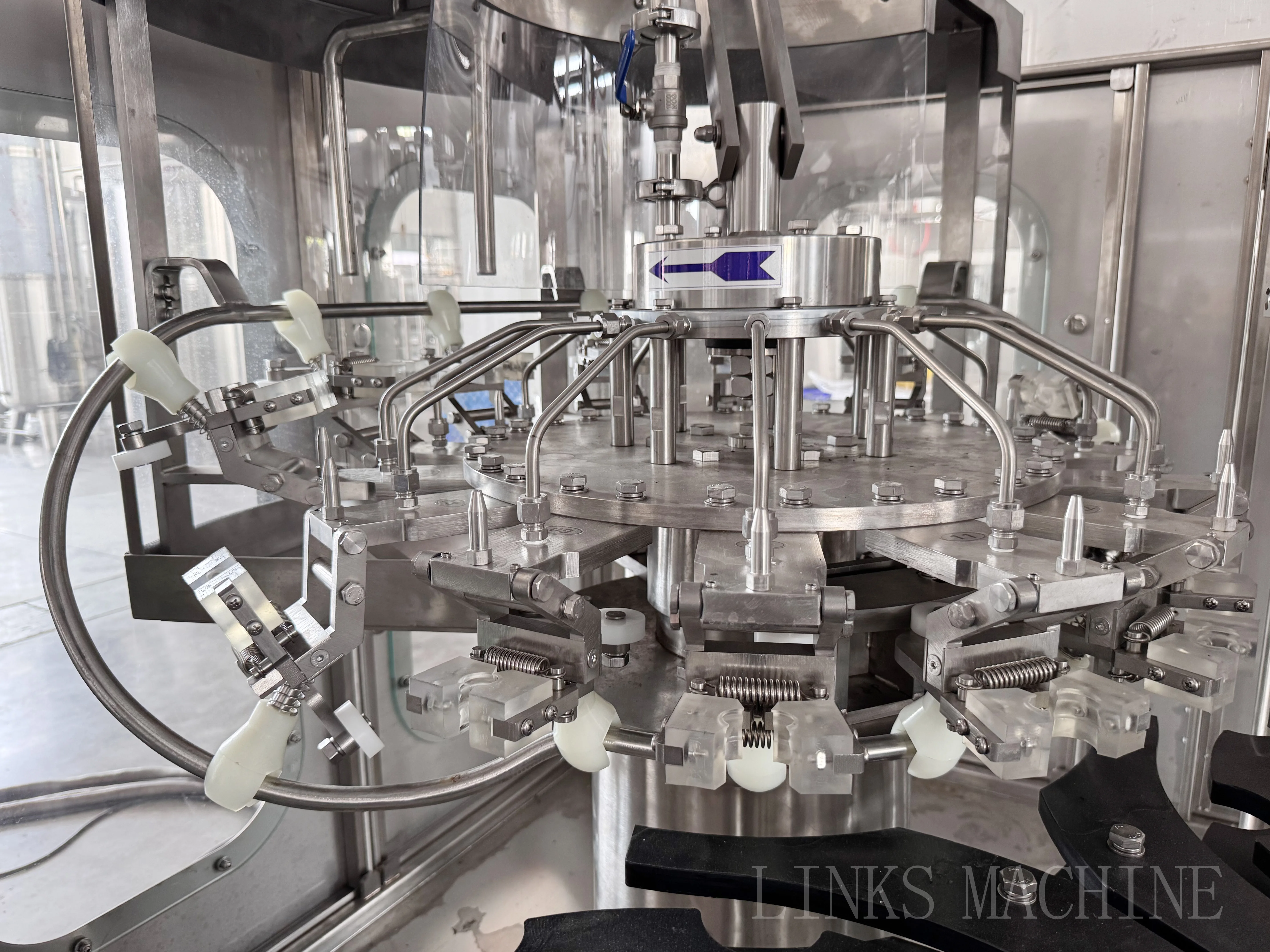

1)The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the
glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2)Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

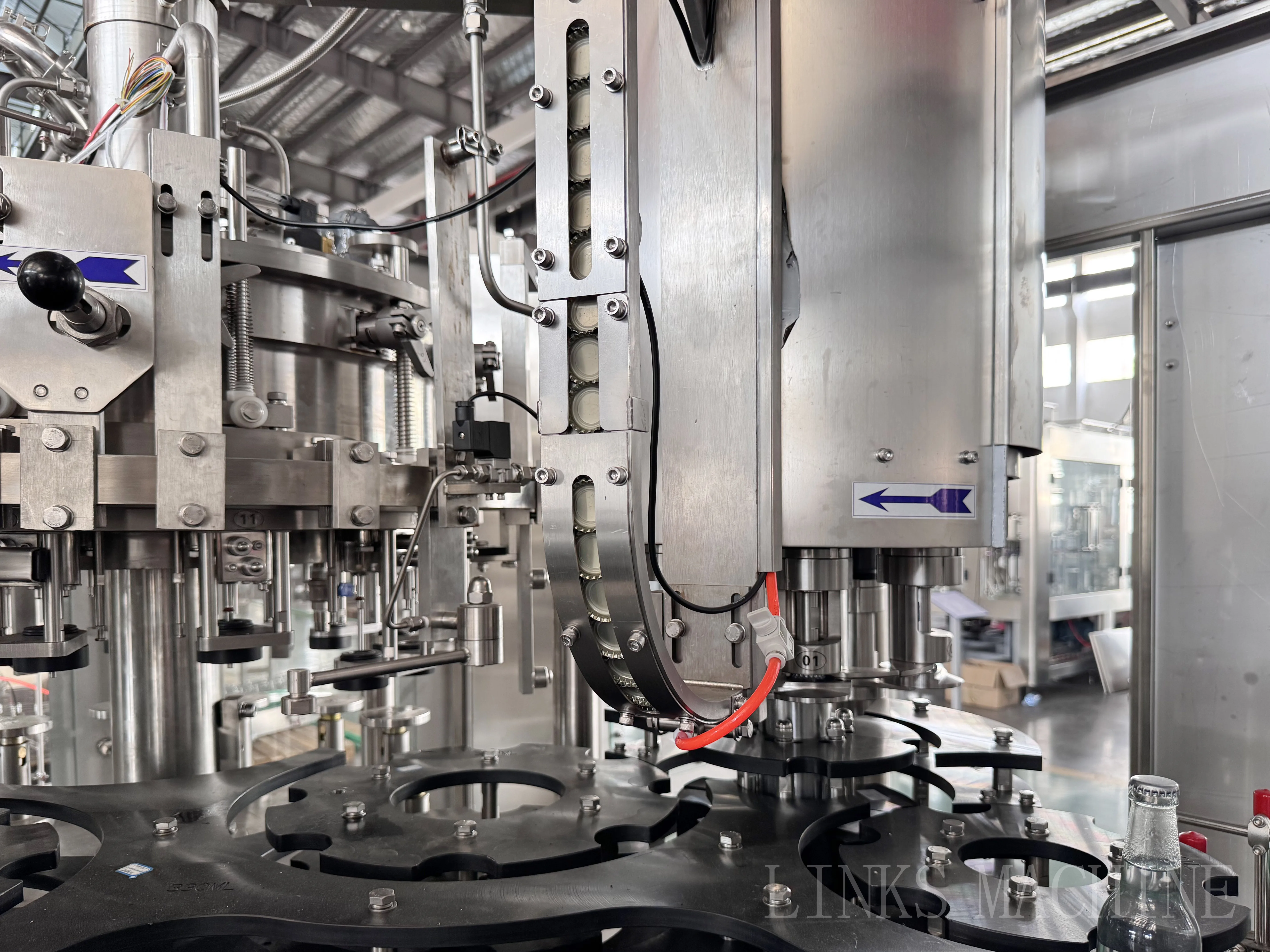

3)Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

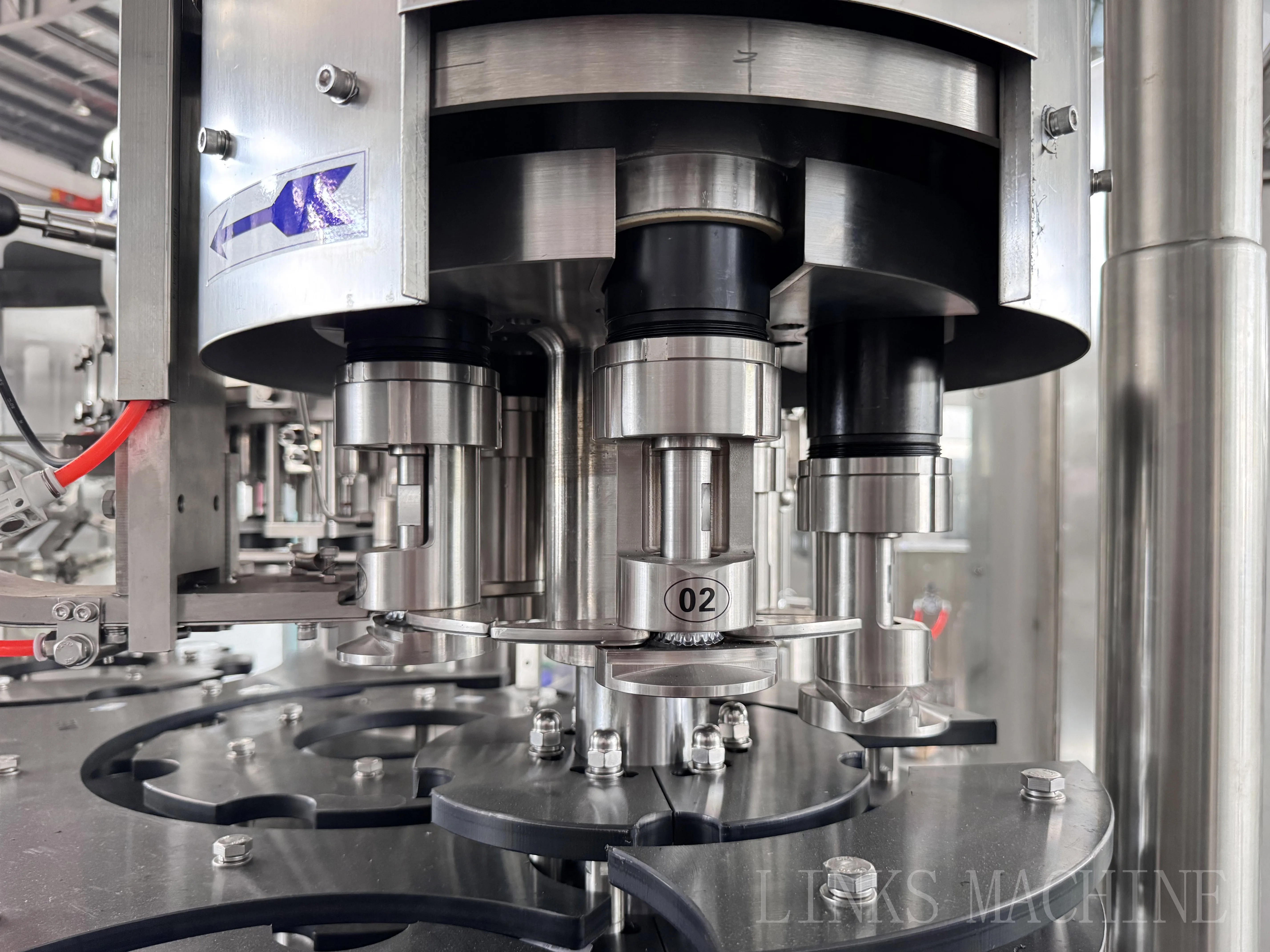

4)Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and
reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic
unloading,reducing the rate of broken bottles.
5)Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6)Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7)With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8)All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the
wall of mirror-polished, ensuring it is healthy.
9)Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10)The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine factory
Name
Brand
Area
PLC
Siemens
Germany
Inverter
Siemens
Germany
Contactor
Siemens
Germany
Touch screen
Siemens
Germany
Inverter
Siemens
Germany
Motor
ABB
Swiss
Pneumatic parts
FESTO
Germany
Electrical parts
Schneider
France
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine details

Brewing system

saccharification system & filteration system ,and fermentation and storage system
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine manufacture

Turnkey Project Design

Including beer material supply ,electrical system ,public water system .
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine details
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine supplier

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine supplier

Fruit Juice Line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine factory

Small bottle water line

Like still water / pure water / mineral water  Capacity:1000bph~30000bph
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine manufacture
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine factory
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine supplier
Automatic Beer Glass Production Plant Alcoholic Beverage Rinsing Filling Capping Machine manufacture
