Products Description

product blow molding service mini blow molding machine blow molding machine 18l-5

Full Automatic Plastic Water Juice CSD Beverage PET Bottle Blowing Making Machine Stretch Blow Molding Plant Price

The two–step high speed automatic linear blow molding machines which are applicable in a wide range of PET packaging practice, such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc. With more than 10 years experience in developing and producing blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.

product blow molding service mini blow molding machine blow molding machine 18l-6

Beverage Bottle

Water Bottle / Beverage bottle / Juice Bottle / Coffee bottle....

product blow molding service mini blow molding machine blow molding machine 18l-7

Food & Daily Chemical bottle

Food oil bottle / Cleaning liquid bottle / Cosmetic bottle /
medical bottle ....

Technical parameter: PET bottle blow machine
Model	BL-A2	BL-A4S	BL-A6S	BL-A9S
Cavities	2cavities	4cavities	6cavities	8cavities
Capacity(bottles/hour)	2000 bottles/hour	6000 bottles/hour	9000 bottles/hour	12000 bottles/hour
Application	oil bottle with handle blowing machine
Bottle volume	0.1-2L	0.1-2L	0.1-2L	0.1-2L
Body diameter	<100mm	<100mm	<100mm	<100mm
Max bottle height	<310mm	<310mm	<310mm	<310mm
Main power	25KW	49KW	73KW	85KW
Hp air compressor	2.0 m3/min	2.4 m3/min	3.6m3/min	6.0m3/min
LP air compressor	1.0 m3/min	1.6 m3/min	2.0 m3/min	2.0 m3/min
Machine sizes	1.91.32m	3.21.32m	3.91.32m	4.51.32m
Weight	2000kg	3600kg	3800kg	4500kg

product blow molding service mini blow molding machine blow molding machine 18l-8

Main Features：

i. The man-machine interface is easy to operate. Everything is computerized, including temperature adjustment and preform distribution. ii. Preform unscrambling, loading, bottle handling and ordering are all operated by stainless steel manipulator automatically without a second contamination. iii. The circulating chilling water system can protect the bottle neck against deformation when the preform is being heated. iv.The homothermal heater adopts auto reflection and closed loop adjusting system which have the power supplied constantly in proportion, not affected by the fluctuation of voltage. The conveying chain is short pitched and paratactic, which helps to realize slow heating and low power consumption. As a result, the preform can be heated evenly and easy to blow. iv. The positioned installation of molds makes it possible to change molds easily within 30 minutes. v. All the critical parts we use for the machines, such as the electrical, hydraulic and pneumatic components, servo motor, etc, are famous branded parts imported from Japan, USA and Europe,which ensures the stability and long life of our equipments.

Details Images

product blow molding service mini blow molding machine blow molding machine 18l-9

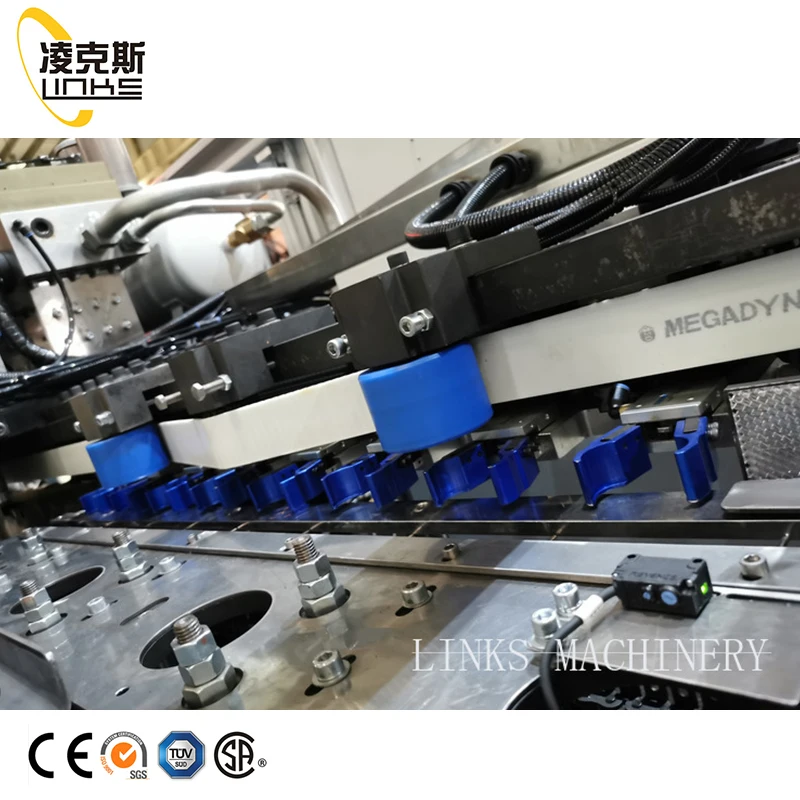

Stepping mechanism:

Type : Servo motor drive Brand: Yaskawa (Japan) Servo motor's synchronical high speed and precise positioning. Slide stepping by orbit is swift and stable with less cycle time and higher efficiency.

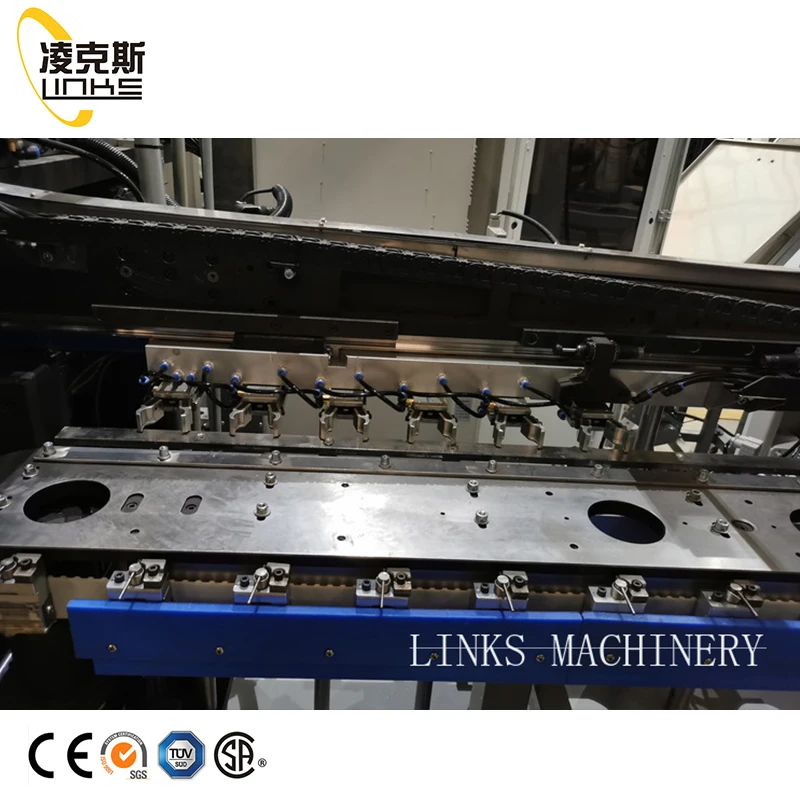

Mold movement mechanism

Type : Servo motor drive Brand: Yaskawa (Japan) Ensures that the series of the mold motions are simple, accurate, consistent and speedy, making cycle time 0.3~0.5 seconds.

product blow molding service mini blow molding machine blow molding machine 18l-10

product blow molding service mini blow molding machine blow molding machine 18l-11

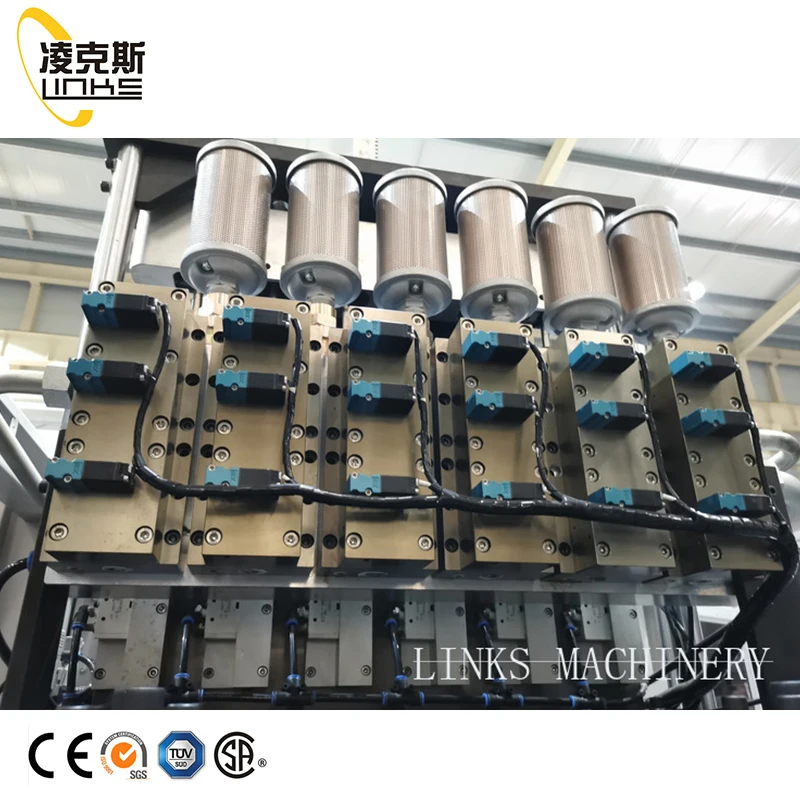

Stretching mechanism & Mould

Type: Servo motor drive Brand: Yaskawa (Japan) Ensures the synchronicity of the motion of the rods and makes it easier to do adjustment prior to production.

Heating tunnel

Type: Eco friendly & Energy save Brand: Lianggu (China) Each lamp pipe in the heater can be controlled individually. Moreover, the heaters are equipped with the converter controlled circulating air cooling system that can keep the temperature constant inside the heater and preforms heated consistently

product blow molding service mini blow molding machine blow molding machine 18l-12

product blow molding service mini blow molding machine blow molding machine 18l-13

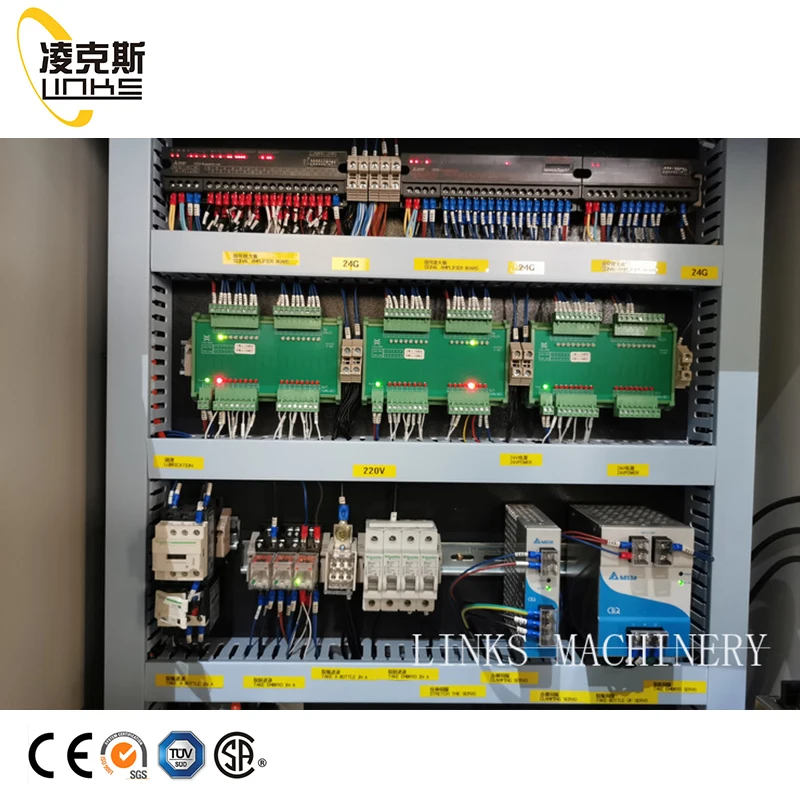

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France
