Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System

Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System

Chemical and cosmetic filling equipment for volumes from 1ml to 1000ml. Integrated with screw capping and labeling system, it ensures precise filling, secure sealing, and professional branding for efficient production.

Get a Quote Contact
  • Description
product chemical cosmetic filling equipment from 1ml to 1000ml with screw capping labeling system-4

+8613616242830
[email protected]
Inquiry
Products Description
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details

High Quality Edible Oil Filling Automatic Line For Vegetable Oil / Cooking Oil / Soybean Oil

*The Piston filling machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry .
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System supplier
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System supplier
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System manufacture
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System supplier
Technical parameter :oil filling automatic line
Model
LPH06
LPH08
LPH10
LPH12
LPH16
RPH24
Capacity (for 500ml)
1200bph
1800bph
2500bph
2800bph
4000bph
8000bph
Suitable bottle
Glass Bottle / PET Bottle
Bottle volume
0.1L~1L , 1L~2L,1L~3L ,1L~5L
Compressor air
0.3-0.7Mpa
Air consumption
0.37 m3/min
Application
oil filling automatic line
Total power (KW)
1.2kw
1.6kw
1.8kw
2.2kw
2.5kw
3.2kw
Overall dimensions
3.2*1.2m
3.2*1.2m
3.2*1.2m
3.6*1.2m
3.6*1.2m
3.6*1.2m
Height
1.8m
2m
2.2m
2.3m
2.5m
2.6m
Weight(kg)
1200kg
1500kg
2000kg
2500kg
2800kg
3000kg
Details Images
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details

Features:

<1> Suitable material: Oil, jams, daily chemicals, and something that very viscous.
<2> PLC control :This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
<3> Accurate measurement: adopt servo control system, ensure the piston can always reaches constant position.
<4> Anti drop function :When close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution.
<5> Convenient adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details

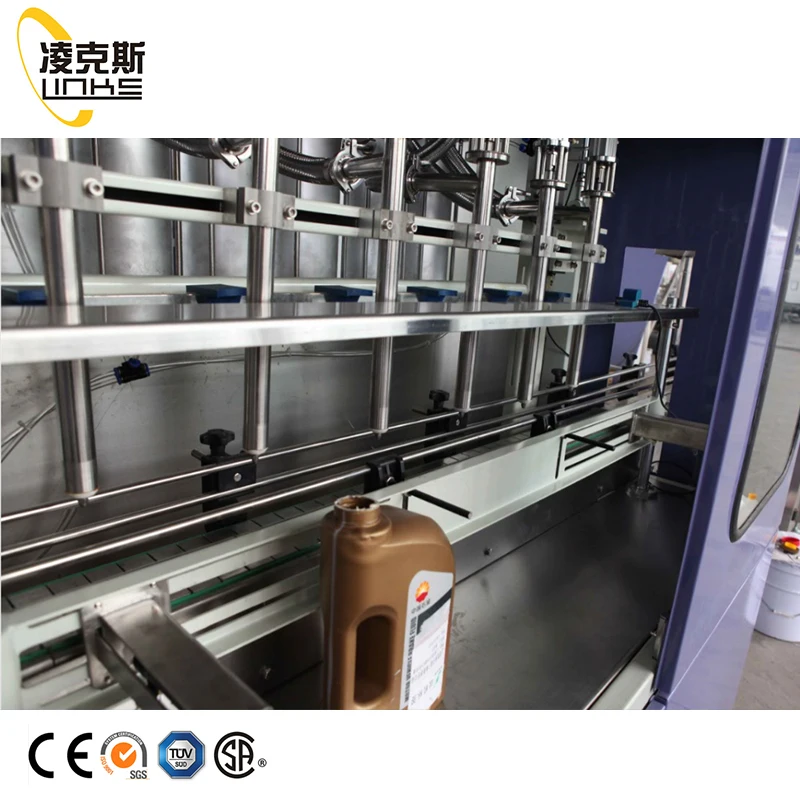

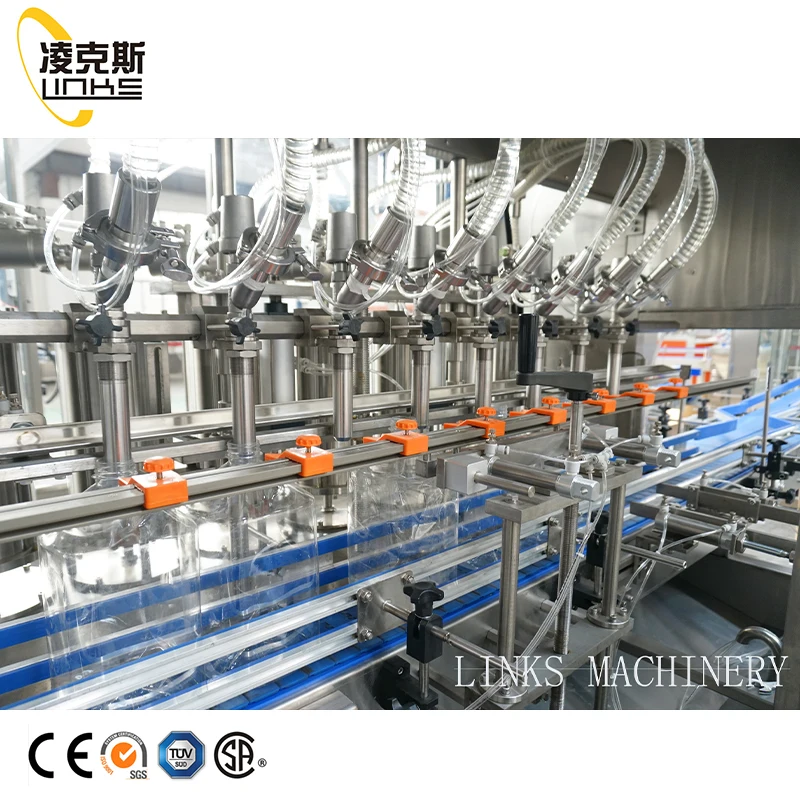

Anti Leakage filling valve
1)Used for viscous material 2)Fast speed filling ,precision and stability 3)With anti foam function by diving system 4)Filling valve with airtac cylinder to prove anti leakage fucntion
Volumetric filling piston
1)Fast speed filling ,precision and stability 2)By servo motor drive 3)Material :SUS316L 4)Different filling volume 1L / 2L / 3L / 5L 5)Easy different volume setting
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details
Name
Brand
Area
PLC
Siemens
Germany
Inverter
Siemens
Germany
Contactor
Siemens
Germany
Touch screen
Siemens
Germany
Inverter
Siemens
Germany
Motor
ABB
Swiss
Pneumatic parts
FESTO
Germany
Electrical parts
Schneider
France
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System manufacture
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System factory

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details

Fruit Juice Line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details

Small bottle water line

Like still water / pure water / mineral water  Capacity:1000bph~30000bph
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System manufacture
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System manufacture
Chemical & Cosmetic Filling Equipment, From 1ml to 1000ml, With Screw Capping Labeling System details
