Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant

Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant

Beer can filling line for aluminium cans. Integrates rinsing, filling, and sealing, ensuring high-speed, precise, and hygienic packaging for efficient beer production.

Contact

Description

product complete beer can filling line automatic alcoholic liquid bottling packaging plant-4

+8613616242830

[email protected]

Description

Products Description

Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant details

High Quality Beer Can Filling Machine / Can Filler / Bottling Plant

* We provide the complete pop cans / tin can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,Juice industry and so on

Technical parameter :Beer Filling Machine

Model

GDF12-1

GDF18-4

GDF24-4

GDF32-6

GDF40-8

Capacity (for 500ml)

2000

8000

10000

15000

20000

Suitable bottle

Pop can / Tin can / PET can

Bottle diameter(mm)

Dia50 ~ Dia99mm

Bottle height (mm)

70-133mm

Filling type

Isobaric filling / Normal pressure filling

Application

beer can filling machine

Total power (KW)

2.4kw

4.5kw

5.2kw

6.5kw

7.2kw

Overall dimensions

2.5*1.9m

2.8*1.9m

3.2*2.2m

3.4*2.5m

4.8*2.3m

Height

2.3m

2.5m

Weight(kg)

2000kg

3500kg

4500kg

5000kg

7000kg

Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant supplier

Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant factory

Complete Beer Can Filling Line Automatic Alcoholic Liquid Bottling Packaging Plant manufacture

Different filling capacities：

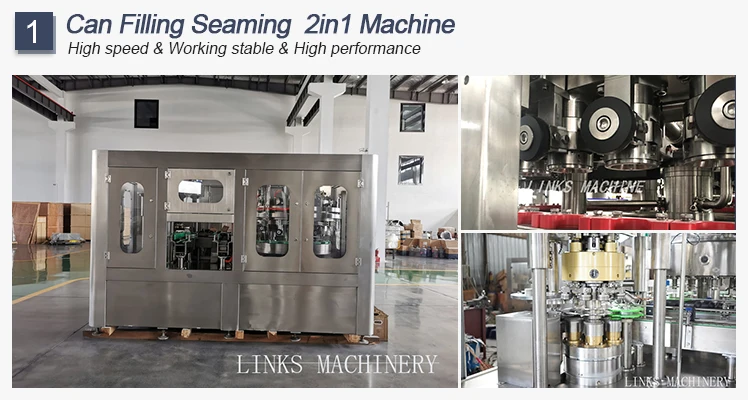

GDF12-1 Can Filling And Seaming Machine Capacity:1500-2000 bottles per hour. GDF18-4 Can Filling And Seaming Machine Capacity:6000-8000 bottles per hour. GDF24-4 Can Filling And Seaming Machine Capacity:9000-10000 bottles per hour. GDF32-6 Can Filling And Seaming Machine Capacity:12000-15000 bottles per hour. GDF40-8 Can Filling And Seaming Machine Capacity:18000-20000 bottles per hour.

Details Images

Specializing in canned food packing machinery ,like filling and sealing machine for auto production of tin ,aluminium ,plastic or paper cans of beverage ,fruit ,vegetable ,milk powder ,etc

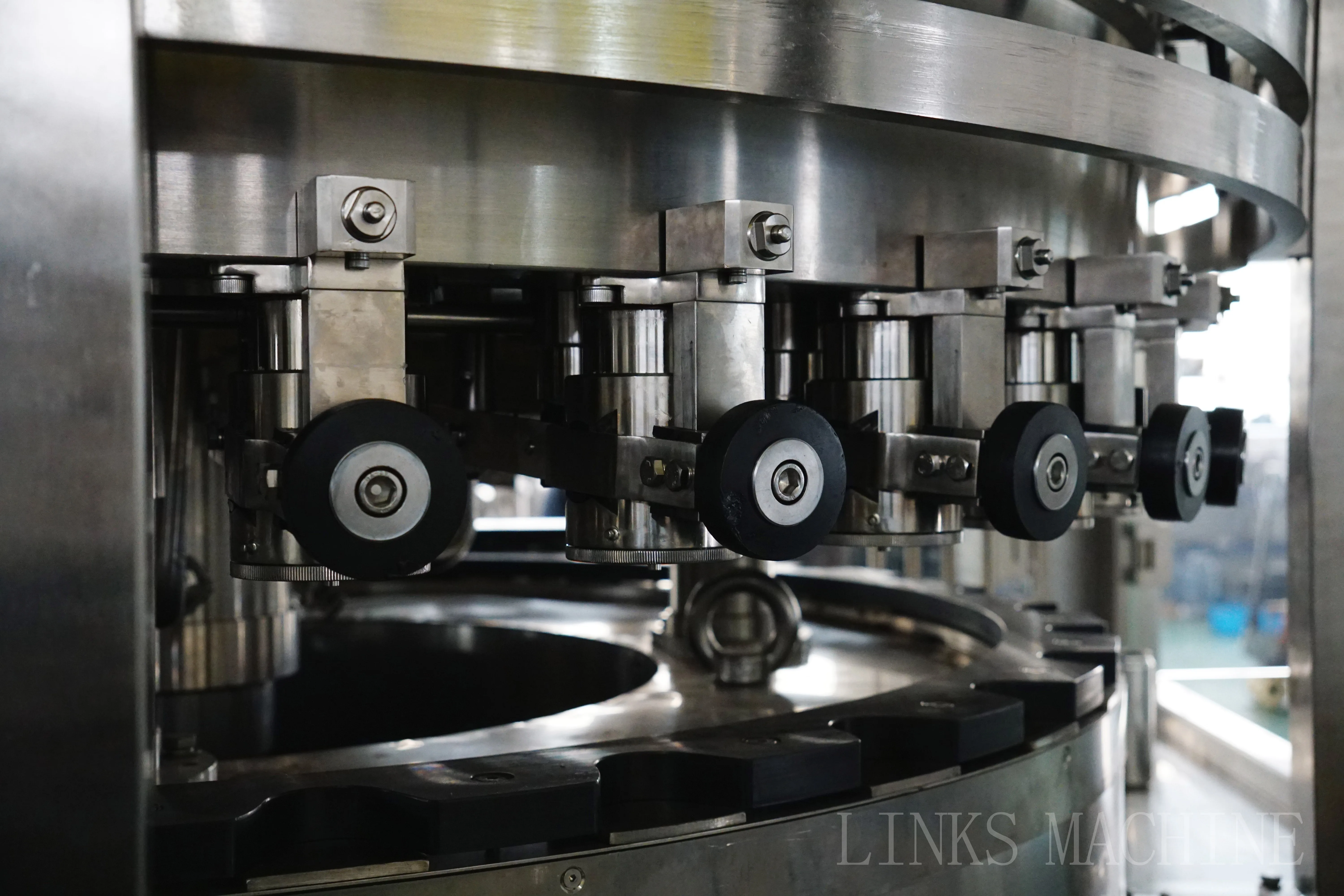

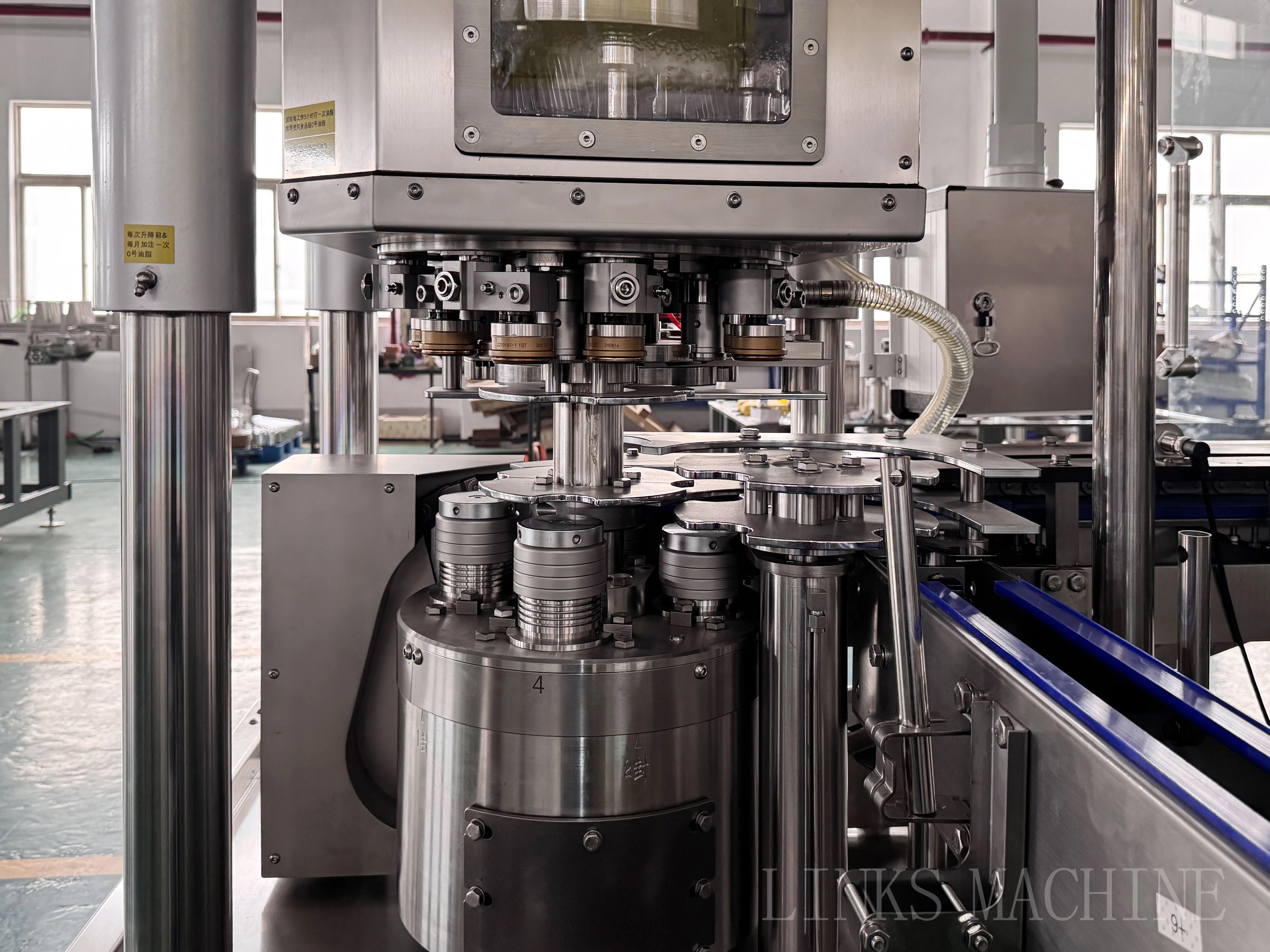

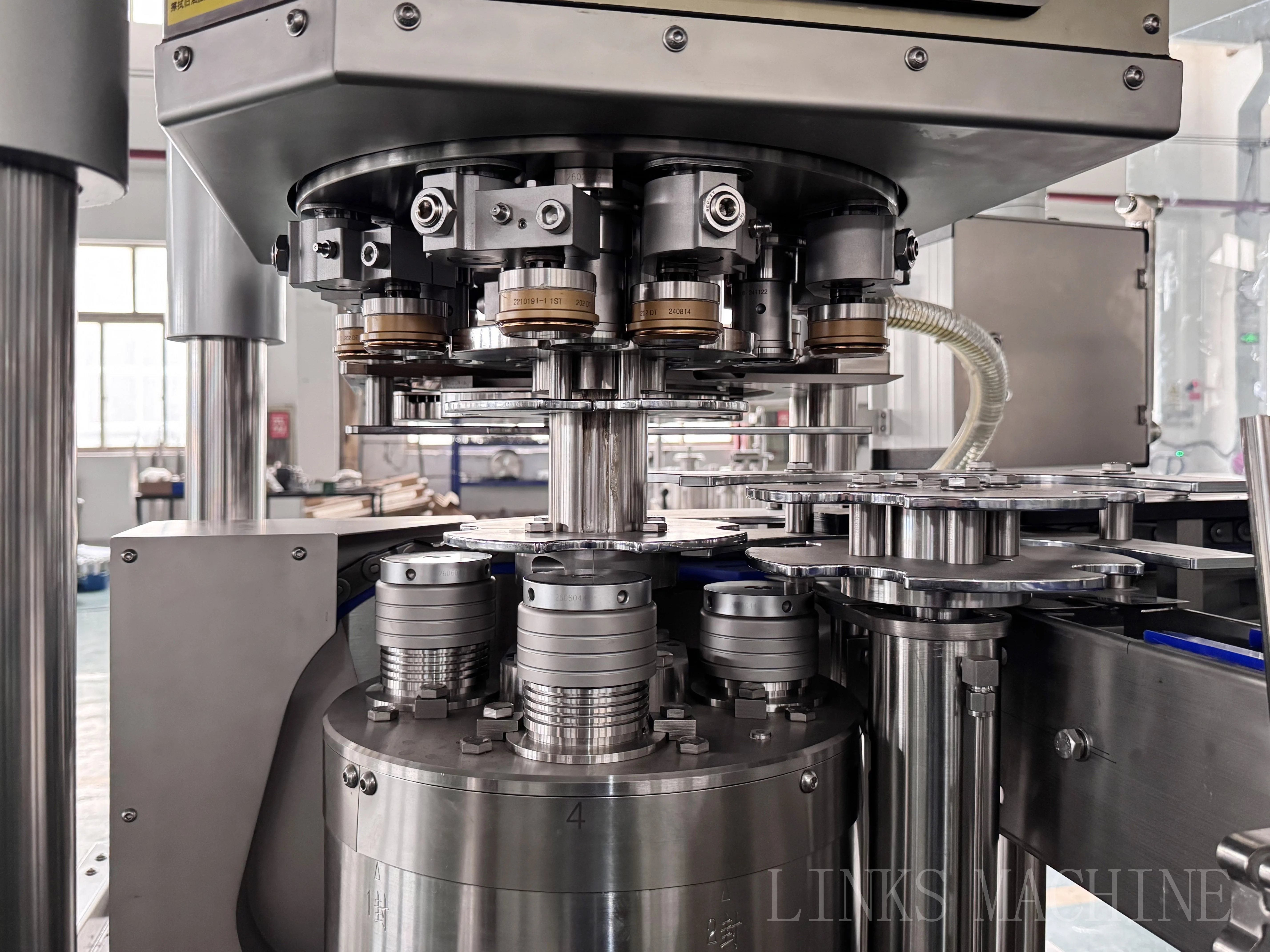

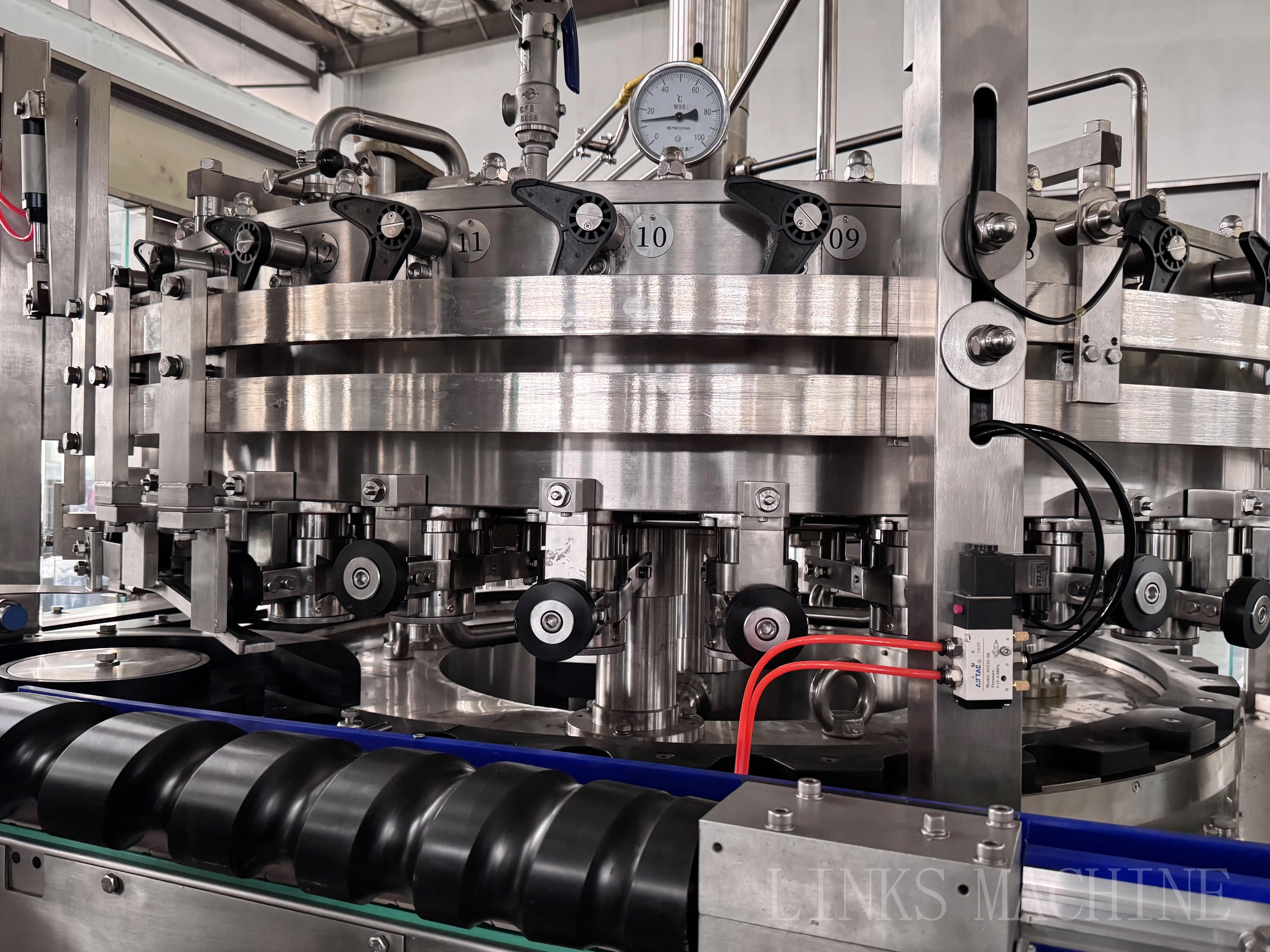

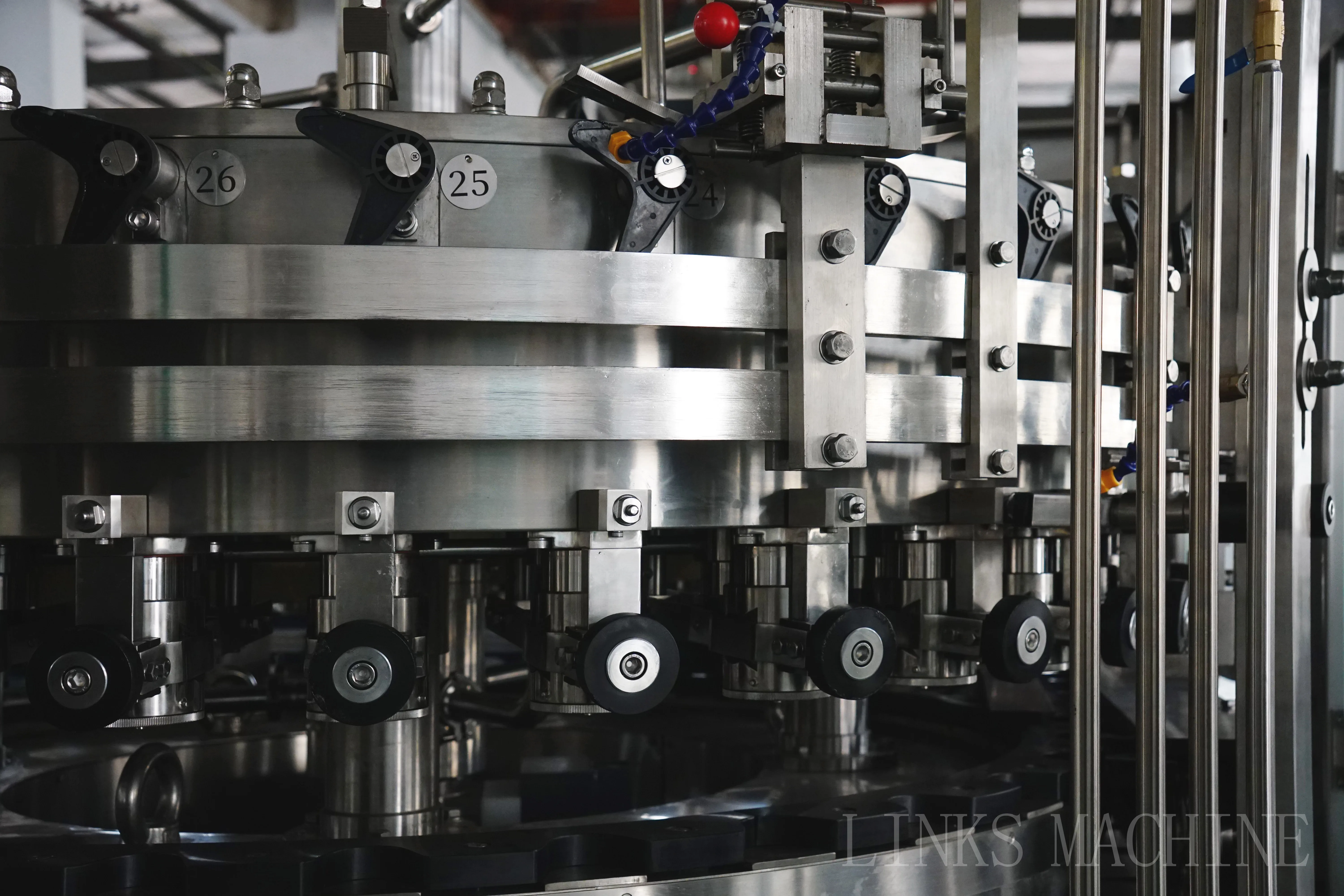

The machine is suitable for filling and sealing beverage or brewage industry ,it have such features as rapid filling and sealing speed ,consistent height from the liquid level in the can to the can mouth after filling ,stable machine operation ,good sealing quality ,beautiful and decent appearance ,convenient use and maintenance ,touch screen operation ,frequency conversion speed adjustment ,etc.it is the most ideal filling and sealing device for beverage plants and brew houses

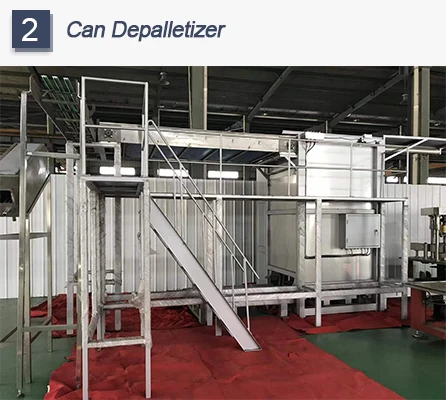

It can replace the manual can arrangement,increase production efficiency ,it is an indispensable ideal device for middle and large sized beverage plants ,PLC Programmable computer automatic controller ,photo-electricity switch,over travel-limit switch and pneumatic control ,etc ,use the famous brand from Germany and Japan and Taiwan

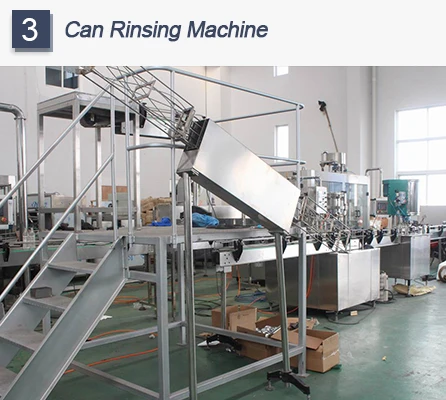

Inline can washing machine ,it will invert the can and rinsing the water ,the water can be recycled to save the water usage by the water collect .use the famous brand from Germany and Japan and Taiwan

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

As customer request and market demand ,we provide the better solution for the final product package ,We have various kinds of options .Labeling machine have the PVC sleeve label ,BOPP hot glue label,Adhesive stick label ,Wet glue label ,and packing machine have the film shrink machine and carton box package.

We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space . This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
