300 BPH 5 Gallon Water Filling Machine Bottle Drinking Water Production Line

300 BPH 5-gallon water filling machine for bottled drinking water production lines. Offers high-speed, precise, and hygienic filling, ideal for efficient large-scale water bottling operations.

  • Description
  • Details Images
  • Company Profile
  • FAQ
Products Description
300 BPH 5 Gallon Water Filling Machine Bottle Drinking Water Production Line manufacture

Automatic Bottled Water Production Line For Pure Water or Mineral Water

*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine /Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system
Technical parameter : water filling machine
Model
QGF-150
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Capacity(for 5 gallon)
60-150bph
300bph
450bph
600bph
900bph
1200bph
Suitable bottle shapes
PET circular or square
Bottle volume
3 & 5 Gallon
Air consumption
0.37 m3/min
Compressor air
0.3-0.7Mpa
Rinsing pressure
>0.06Mpa <0.2Mpa
Application
5gallon water production plant
Total power (KW)
1.5kw
3.8kw
4.5kw
5.2kw
6.2kw
7.8kw
Overall dimensions
2.3*1.9m
2.5*1.9m
2.8*2.15m
3.1*2.5m
3.8*2.8m
4.5*3.3m
Height
1.8m
2m
2.2m
2.3m
2.5m
2.6m
Weight(kg)
800kg
1500kg
2000kg
2500kg
2800kg
3500kg

Description:

The filling line specially for 3-5 gallons barreled drinking water ,with type
QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.
It integrateds bottle washing,filling and capping into one unit,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

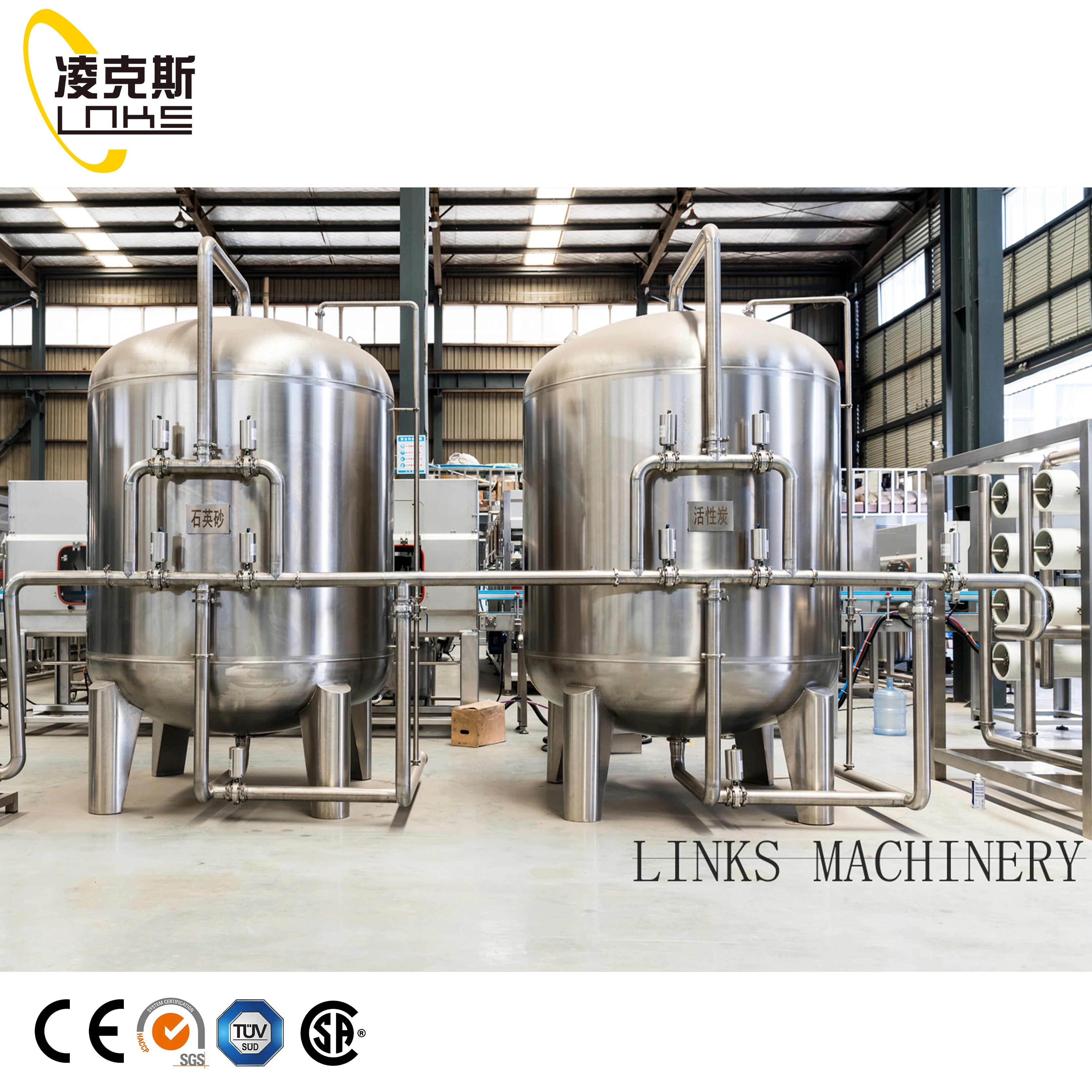

Water Treatment Plant
Based on the client's water source analysis report and the final water standards required, we will advise the client to select a suitable water treatment plant.
This machine uses air conveyor and neck-clamping technology to eliminate screws and chains, enabling easy bottle changeovers; it features durable, contamination-free washing clamps, a high-speed precise filling system, and advanced PLC control with reliable components, ensuring stable operation, flexible adaptation to different bottle types, and efficient production.
Filling Machine
Packaging Solutions
Based on customer requirements and market demands, we offer superior solutions for final product packaging, with a wide range of options. Labeling machines include PVC sleeve labels, BOPP hot glue labels, self-adhesive labels, and wet glue labels; packaging machines include film shrink wrappers and carton packaging.
We design factory layouts based on the scale of our clients' factories. The entire production line is designed based on brand-name motors and automatic lubrication systems, saving space with less power consumption.
Factory Layout Design
Blow Molding Machine
This machine is a fully automatic, highly intelligent, stable, and reliable blow molding machine with a simple structure and low energy consumption. It is very popular and widely used in the food, beverage, cosmetics, and pharmaceutical industries.
Links Co., Ltd., a turnkey factory supplier, is a leader in quality and technology from raw materials to bottled liquids to finished products, and is known for developing innovative, high-end products and new technologies.
Links Co., Ltd.


Zhangjiagang Links Machinery Co., Ltd. is located in the beautiful Zhangjiagang City. Zhangjiagang has an advantageous geographical location, located in the economic hinterland of the most developed and dynamic Yangtze River Delta in China, adjacent to Shanghai Port, with convenient transportation and developed economy. Links Machinery was established in 2001. The factory covers an area of more than 15,000 square meters. It is a professional beverage machinery manufacturer integrating R&D, manufacturing, sales and service. It is one of the best suppliers of beverage machinery and equipment in China, providing high-quality production equipment and perfect services for manufacturers in many countries and regions around the world. The products are widely used in beverages, beer, milk, essence, cosmetics, medicine, etc. industry.

We have been committed to building the industry's leading beverage packaging machinery, and continue to develop and innovate beverage packaging machinery. Always adhere to technological innovation to drive the company's development. Related products have applied for patents, forming a unique market with competitive advantages. In order to make our equipment perform better and operate more stably, our company cooperates with domestic professional colleges and universities to combine filling machines and optimize the design of related equipment. It is our goal to meet the individual needs of customers and maximize the benefits for customers.

1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottle making plant and water purification plant to filling and packing plant.
2) How can I know the machinery quality before I order?
A: First, we will invite you to visit our factory to inspect the machine quality, and we can also show the machines running in our factory.
3) What certificates can you provide?
A: Our factory can provide CE, SGS, and ISO certificates. According to the requirements of some countries, we can also provide PVOC, COC, SONCAP, etc.
4) Can your factory make the bottle drawing, workshop layout, and labels for us?
A: Yes, we can help customers design their own bottle shape, workshop layout, and label drawings free of charge.
Note: For the workshop layout, the customer needs to provide the factory size.
5) Installation and training time
A: We have professional engineers for overseas installation and training. They can speak English and have extensive overseas working experience.
Customers need to provide the engineer's visa, round-trip air tickets, accommodation, and meals. The daily salary is USD 80, and the installation and training period usually takes around 20-40 days.
6) Warranty time
A: We provide an 18-month warranty for machinery parts, and the warranty period for electrical parts is 12 months.
