Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine

Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine

Complete PET bottling plant for juice with hot filling capabilities. Integrates washing, filling, capping, and packaging, ensuring efficient, hygienic, and high-quality production for plastic bottle beverages.

Contact

Description

product complete pet bottling plant for juice plastic bottle hot filling packaging machine-4

+8613616242830

[email protected]

Description

Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine manufacture

Complete Turnkey Project Juice Filling Line Processing Equipment

*We supply complete solution for the juice filling line ,including Water treatment system /Juice mixing system / UHT Sterilizer /Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine /Automatic Palletizer system.

Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine supplier

Technical parameter :Juice filling line
Model	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12
Capacity(for 500ml)	2000-3000	5000-6000	8000-12000	13000-15000	16000-18000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air	0.3-0.7Mpa
Filling type	Hot filling line
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	Juice filling line
Total power (KW)	4.4kw	4.4kw	5.2KW	6.2kw	7.8kw
Overall dimensions	2.3*1.9m	2.5*1.9m	3.2*2.5m	3.8*2.8m	4.5*3.3m
Height	2.3m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	2500kg	3200kg	5500kg	6500kg	8000kg

Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine details

Different filling capacities 8-8-3 Bottle Water Filling Line Capacity:1000-2000 bottles per hour. 14-12-5 Bottle Water Filling Line Capacity:2000-3000 bottles per hour. 16-12-6 Bottle Water Filling Line Capacity:4000-6000 bottles per hour. 18-18-6 Bottle Water Filling Line Capacity:6000-8000 bottles per hour. 24-24-8 Bottle Water Filling Line Capacity:10000-12000 bottles per hour. 32-32-10 Bottle Water Filling Line Capacity:12000-15000 bottles per hour. 40-40-12 Bottle Water Filling Line Capacity:20000-24000 bottles per hour.

Complete PET Bottling Plant for Juice Plastic Bottle Hot Filling Packaging Machine factory

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.

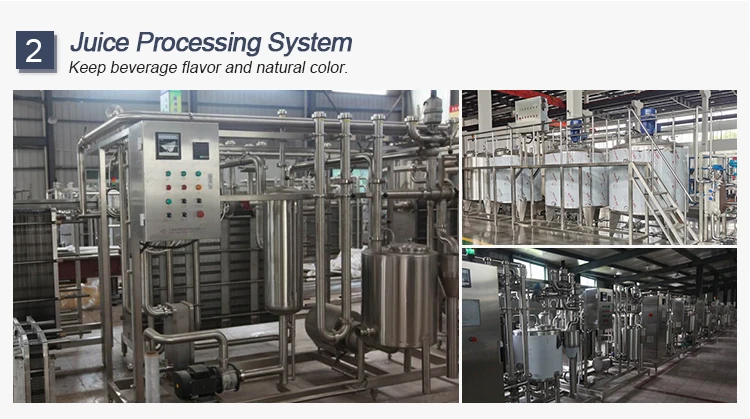

Complete juice processing system with reasonable mixing and sterilization technology ,not only can be suitable for common products ,but also can satisfy special requirements of customers ,for example juice ,milk ,cream or high viscosity products containing fiber and large pulp granules .

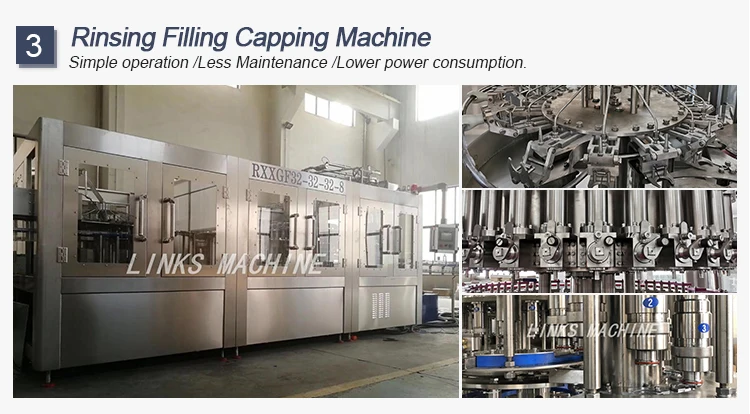

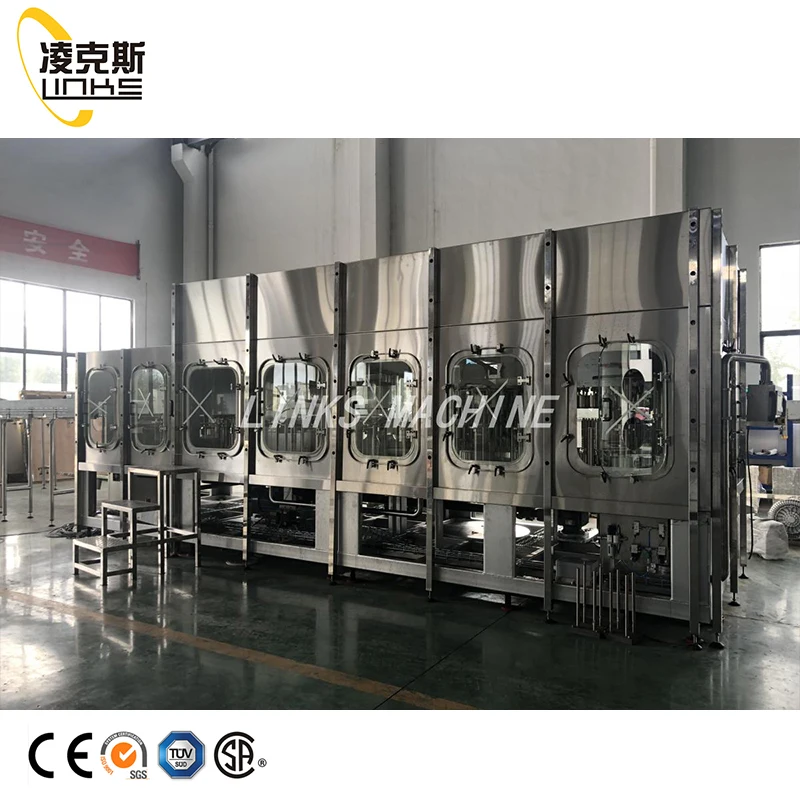

Main Features *Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. * Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. * The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. *High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid loss. *Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. *Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

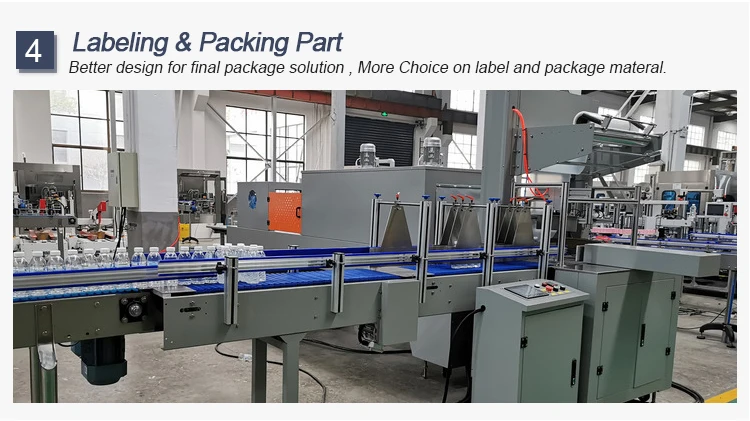

As customer request and market demand, we provide the better solution for the final product package,We have various kinds of options. Labeling machine have the PVC sleeve label, BOPP hot glue label, Adhesive stick label, Wet glue label ,and packing machine have the film shrink machine and carton box package.

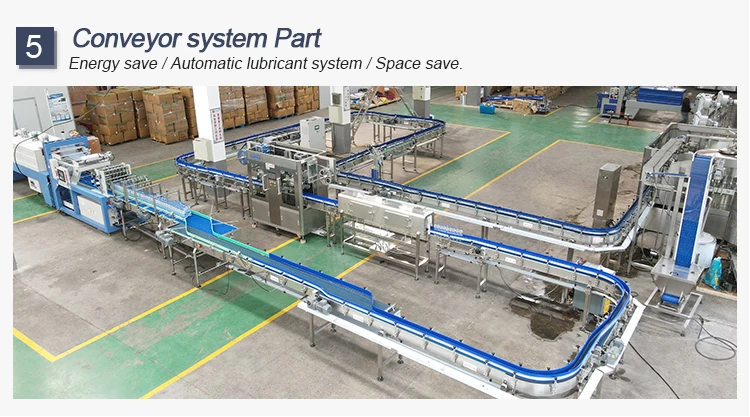

We design the factory layout based on customer factory sizes,whole line design is based on famous brand motors and automatic lubricant system ,and with less power consumption ,and save space .

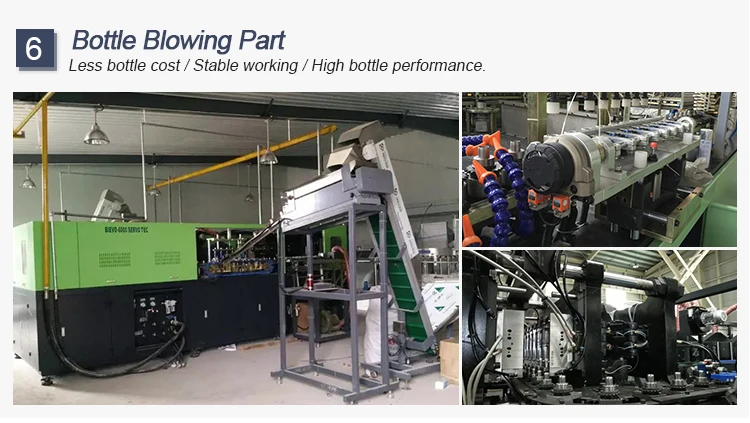

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph

Fruit Juice Line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph

Small bottle water line

Like still water / pure water / mineral water Capacity:1000bph~30000bph

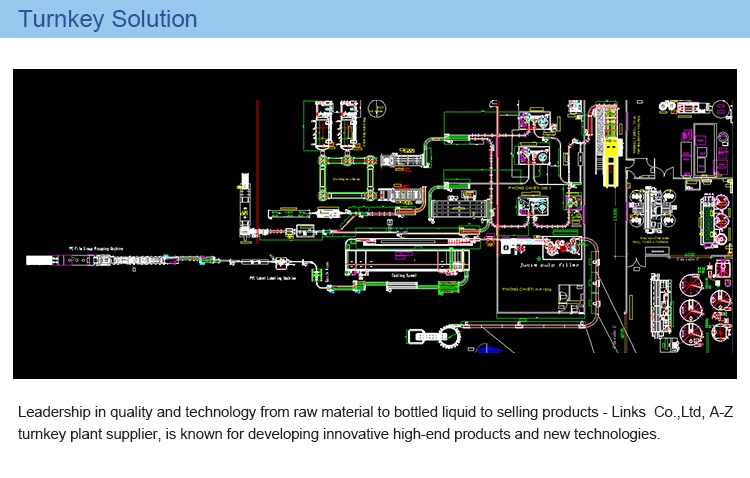

Leadership in quality and technology from raw material to bottled liquid to selling products - Links Co.,Ltd, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.
