Automatic 19 L Big Barrel 20 Liter Polycarbonate Returnable Bucket 5 Gallon Bottled Water Filling Machine

Automatic 19 L Big Barrel 20 Liter Polycarbonate Returnable Bucket 5 Gallon Bottled Water Filling Machine

Automatic 19–20L big barrel water filling machine for polycarbonate returnable buckets and 5-gallon bottles. Ensures precise, hygienic, and efficient filling for large-volume bottled water production lines.

Contact

Description

product automatic 19 l big barrel 20 liter polycarbonate returnable bucket 5 gallon bottled water filling machine-4

+8613616242830

[email protected]

Description

Products Description

Automatic 19 L Big Barrel 20 Liter Polycarbonate Returnable Bucket 5 Gallon Bottled Water Filling Machine details

Automatic Bottled Water Production Line For Pure Water or Mineral Water

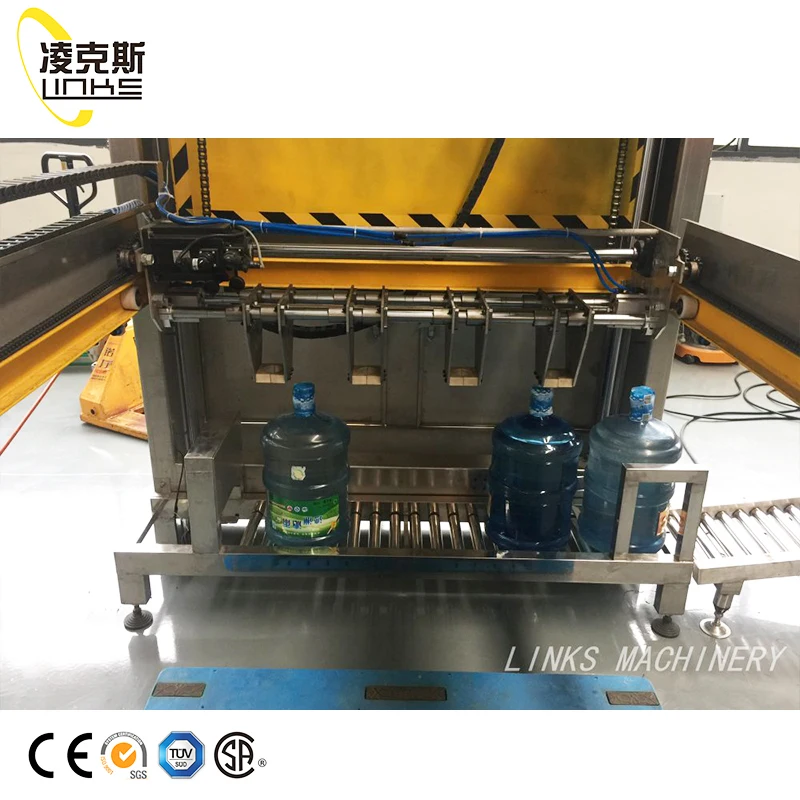

*We supply complete solution for the 5 gallon bucket filling machine ,including Water treatment system / Decapping machine /Inside brusher / Externer brusher / Automatic 5 Gallon rinsing filling capping machine / Automatic Cap sleeve label machine / Code sprayer / Film wrapping machine / Automatic 5 gallon palletizer system

Technical parameter : water filling machine

Model

QGF-150

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Capacity(for 5 gallon)

60-150bph

300bph

450bph

600bph

900bph

1200bph

Suitable bottle shapes

PET circular or square

Bottle volume

3 & 5 Gallon

Air consumption

0.37 m3/min

Compressor air

0.3-0.7Mpa

Rinsing pressure

>0.06Mpa <0.2Mpa

Application

5gallon water production plant

Total power (KW)

1.5kw

3.8kw

4.5kw

5.2kw

6.2kw

7.8kw

Overall dimensions

2.3*1.9m

2.5*1.9m

2.8*2.15m

3.1*2.5m

3.8*2.8m

4.5*3.3m

Height

1.8m

2.2m

2.3m

2.5m

2.6m

Weight(kg)

800kg

1500kg

2000kg

2500kg

2800kg

3500kg

Description:

The filling line specially for 3-5 gallons barreled drinking water ,with type
QGF-100,QGF-240,QGF-300,QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.

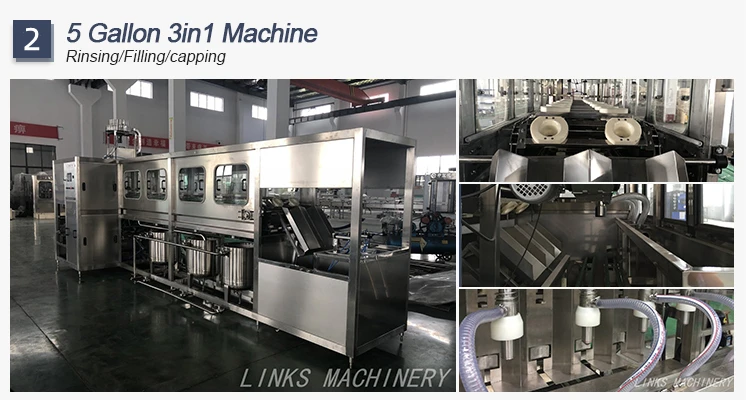

It integrateds bottle washing,filling and capping into one unit,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

Details Images

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.

Automatic 19 L Big Barrel 20 Liter Polycarbonate Returnable Bucket 5 Gallon Bottled Water Filling Machine manufacture

Main Features

This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic.

The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine, vinegar, medicine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Automatic 19 L Big Barrel 20 Liter Polycarbonate Returnable Bucket 5 Gallon Bottled Water Filling Machine factory

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Inverter	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	FESTO	Germany
Electrical parts	Schneider	France

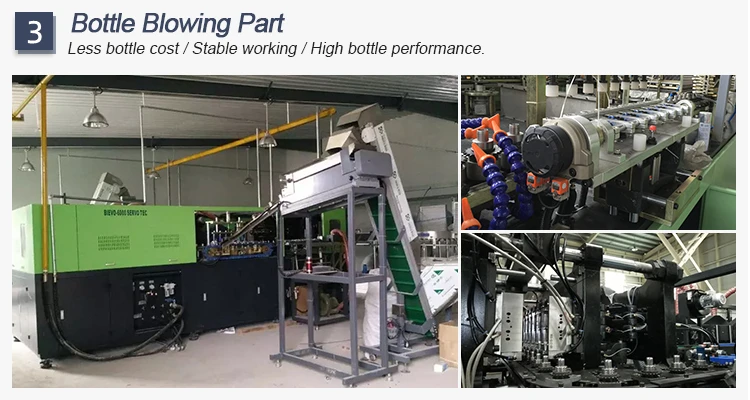

This machine is a fully automatic, high intelligent, stable and reliable blowing machine, with simple structure, and low energy consumption. It is very popular and well used in food, beverages, cosmetics, pharmaceutical industry.
