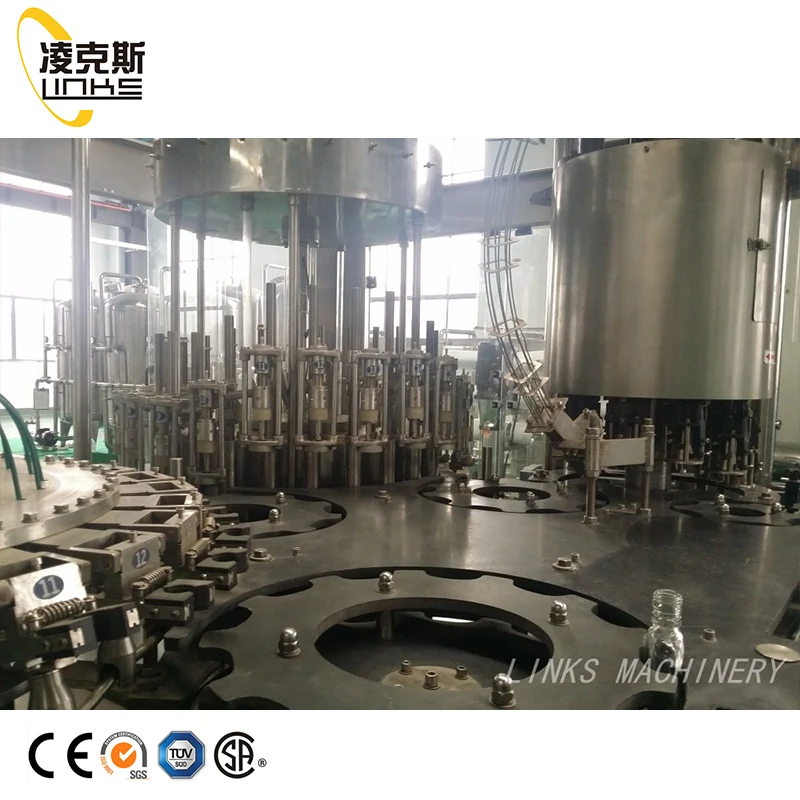

Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line

Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line

Fully automatic glass bottle wine filling line. Combines filling, capping, and bottling for wineries, ensuring precise, efficient, and hygienic production of high-quality beverages.

Get a Quote Contact
  • Description
product fully automatic glass bottle wine winery beverage filling capping bottling line-4

+8613616242830
[email protected]
Inquiry
Products Description
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line manufacture
*Glass bottle beverage filling production line is a hot filling machine integrating washing, filling and sealing. It is suitable for filling various fruit juice drinks, tea drinks and milk drinks.The output of 4000-24000 bottles/hour can be selected by users. Fruit juice beverage equipment adopts advanced micro negative pressure gravity filling principle, filling fast, stable, accurate, equipped with perfect material reflux system, can also realize the reflux independent air return, do not contact with the material, reduce the secondary pollution and oxidation of the material.
Technical parameter:Glass bottle filling machine
Model
BRXGF14-12-5
BRXGF16-16-5
BRXGF24-24-8
BRXGF32-32-8
BRXGF40-40-10
BRXGF50-50-12
BRXGF60-60-15
Capacity(500ml)
2400-3400BPH
4000-5000BPH
7000-8000BPH
10000-12000BPH
14000-15000BPH
17000-18000BPH
18000-20000BPH
Bottle diameter(mm)
φ50-110
Bottle height (mm)
150-340
Electrical Supply
380V，3Phase，50HZ
Filling Precision
±2ml
Overall rise(mm)
2360*1770*1800
2760*2060*1910
2800*2230*2000
4275*2960*1984
4697*3322*2700
5905*4125*2000
5770*5288*2000
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line details
Main Features
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line factory

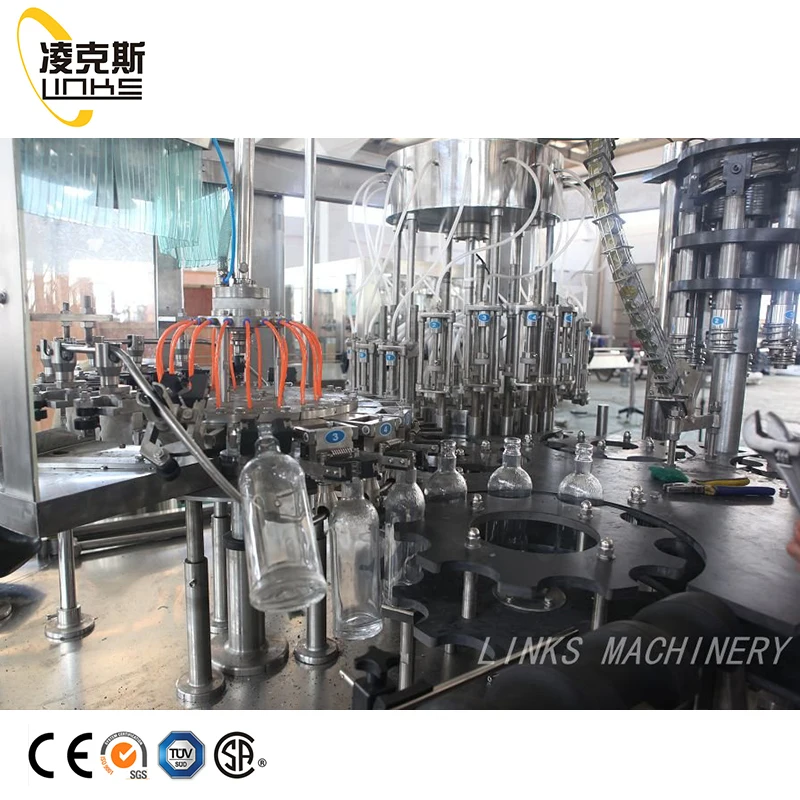

Rinsing Part
It is rotary type, mainly sued for rinsing glass bottles send the bottles to the filling machine. It can be applied for alcohol, beverage, and water bottle rinsing. Glass bottle enters the machine by bottle distributing screw, and turned with mouth down by clip and turn mechanism, after aseptic water rinsing and drying, automatically turn with mouth up, and send to filling machine by bottle-outlet star-wheel. The main structure with rinsing water and outer shield are all stainless steel material; open type gear drive.

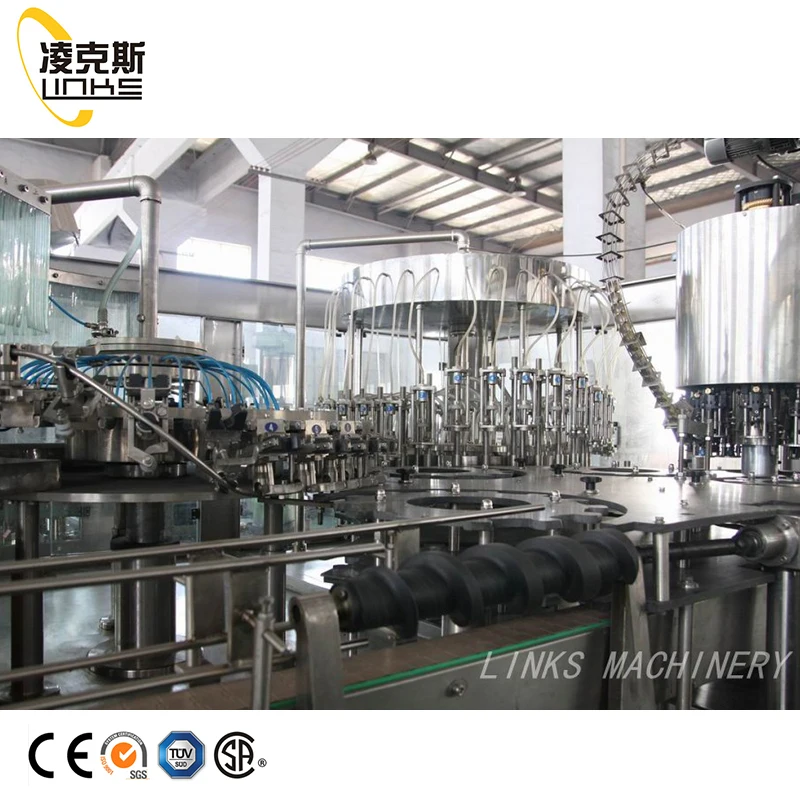

Filling Part
We introduce into Germany technology for the filling machine, and design & manufacture by ourselves with hot filling principle. Filling valve adopts constant pressure mechanism valve, for normal temperature or high temperature filling, filling fast and high accuracy of filling liquid level. It is adopted double guide rod structure. With complete CIP cleaning function.
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line details
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line details

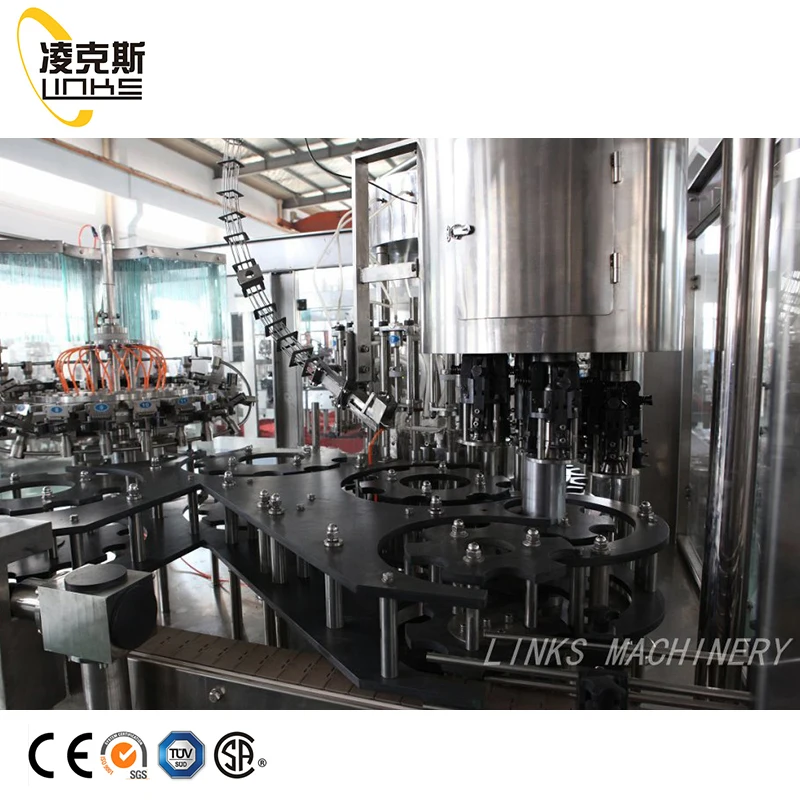

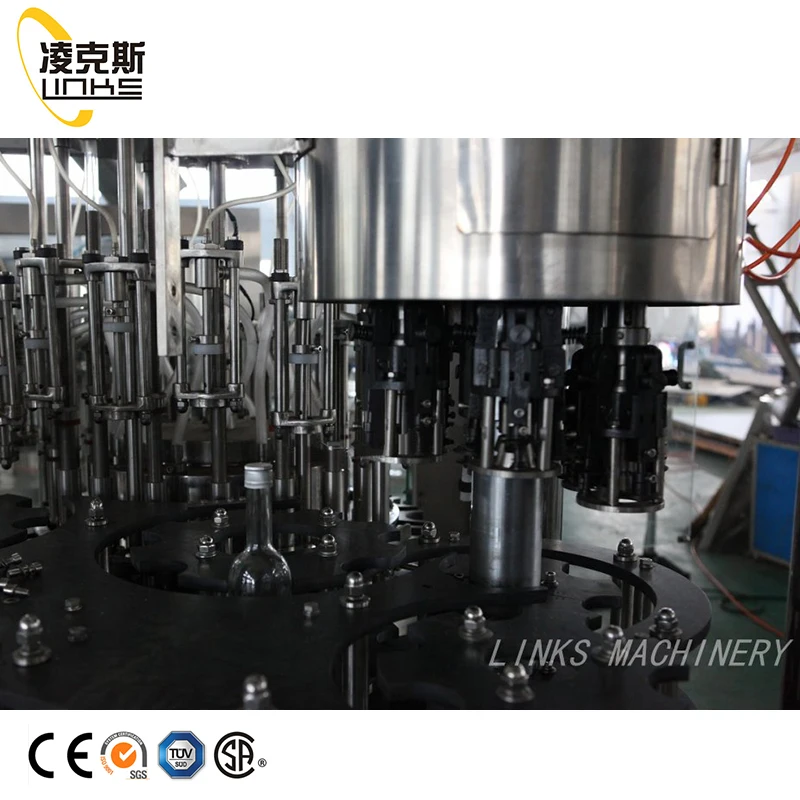

Capping Part
The capping rotates through reduction box drive rotational wheel, which make the cap leave the hopper with the function of centrifugal force. There is a separation device for right cap and reverse cap at the entrance, when the reverse cap passes, the cap automatically fall into and return to pipeline, and blow the reverse cap automatically to hopper through wind power.
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line factory
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line manufacture

Water Treatment System

According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment plants.help to reduce the material consumption and maitenance cost .
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line details

Labeling Machine

According to customer request and market demand ,we provide the better solution for the final product package design,
We have various kinds of options .like PVC sleeve label ,BOPP hot glue label,Adhesive stick label,Cold glue paper label .
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line supplier

Bottle Packging System

We supply the different bottle package deisgn , Film package ,Carton box wrapper ,Film with tray package and so on ..
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line supplier

Bottle Blowing System

We supply the Complete Bottle Blowing System ,start from PET preform injection molding machine ,and Bottle blowing
machine,including air compressor system and water cooling system .
Turnkey Project
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line manufacture

Flow Chart :Complete Glass Bottle Filling Line Project
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line details

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line manufacture

Small bottle water line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line supplier

Fruit Juice Line

Like still water / pure water / mineral water Capacity:1000bph~30000bph
Fully Automatic Glass Bottle Wine Winery Beverage Filling Capping Bottling Line manufacture
