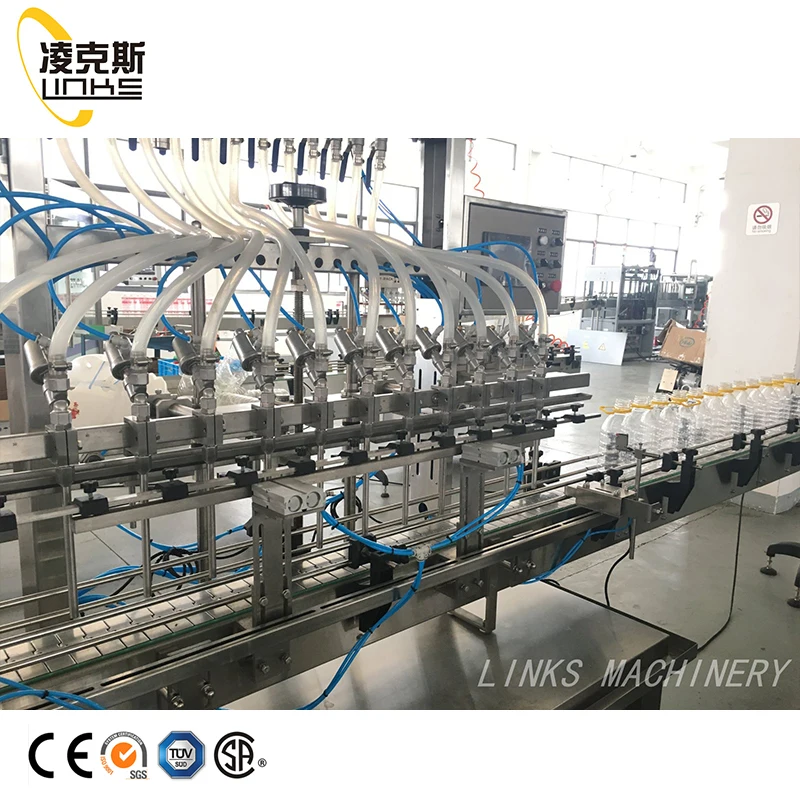

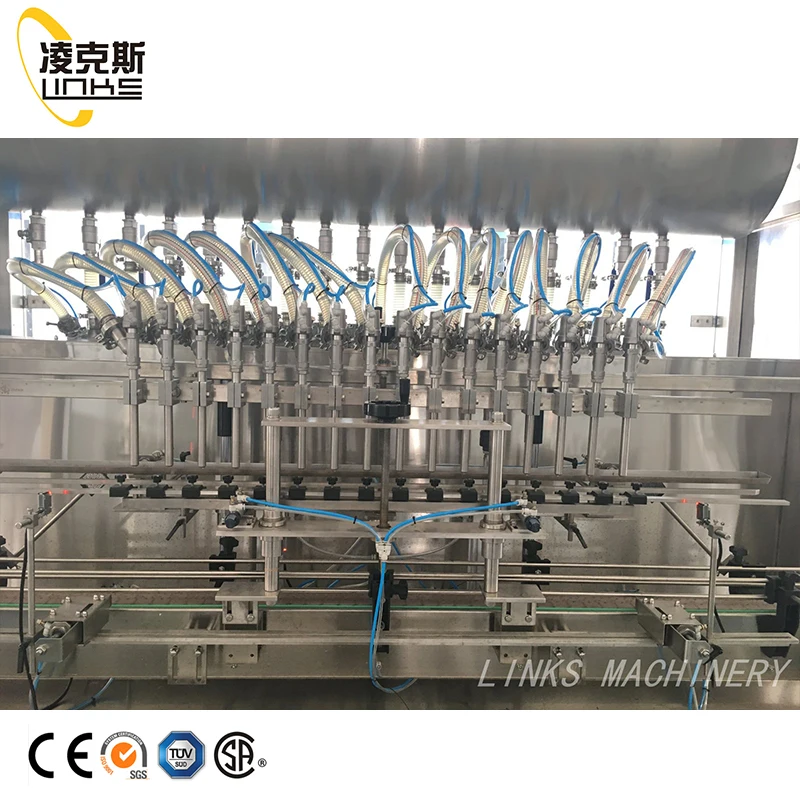

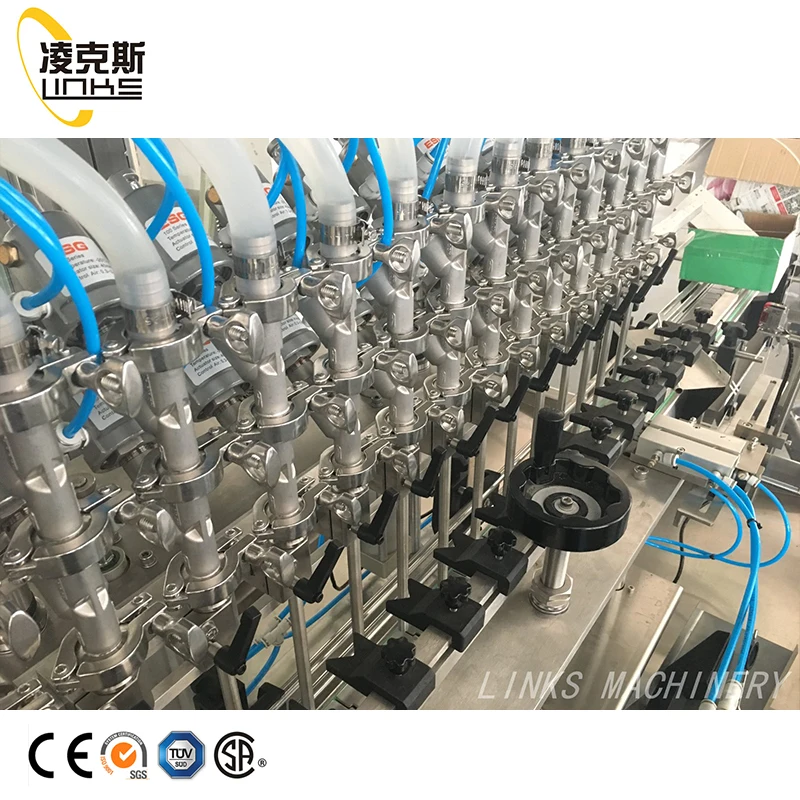

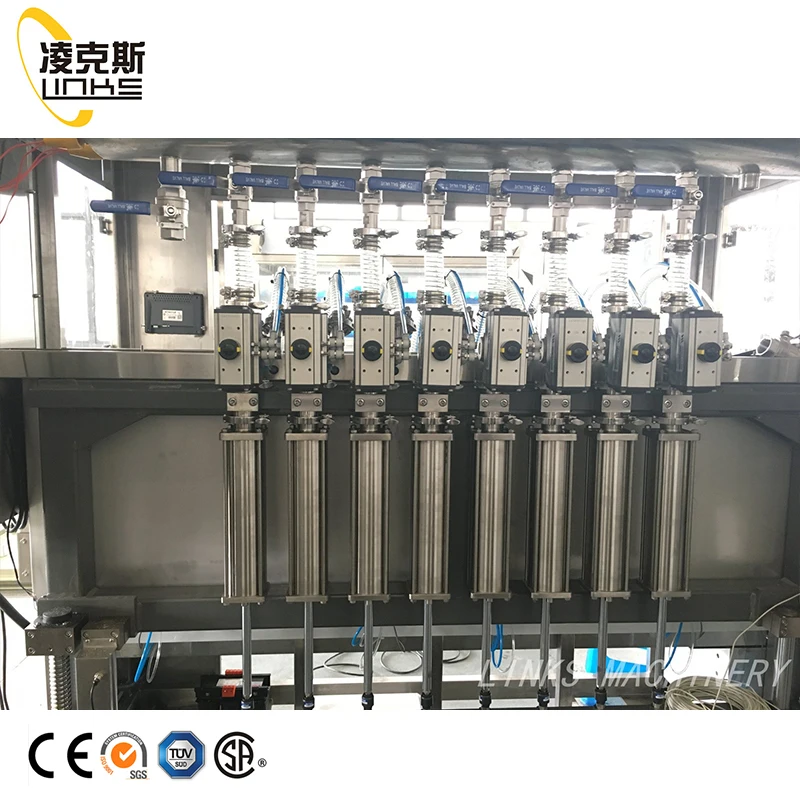

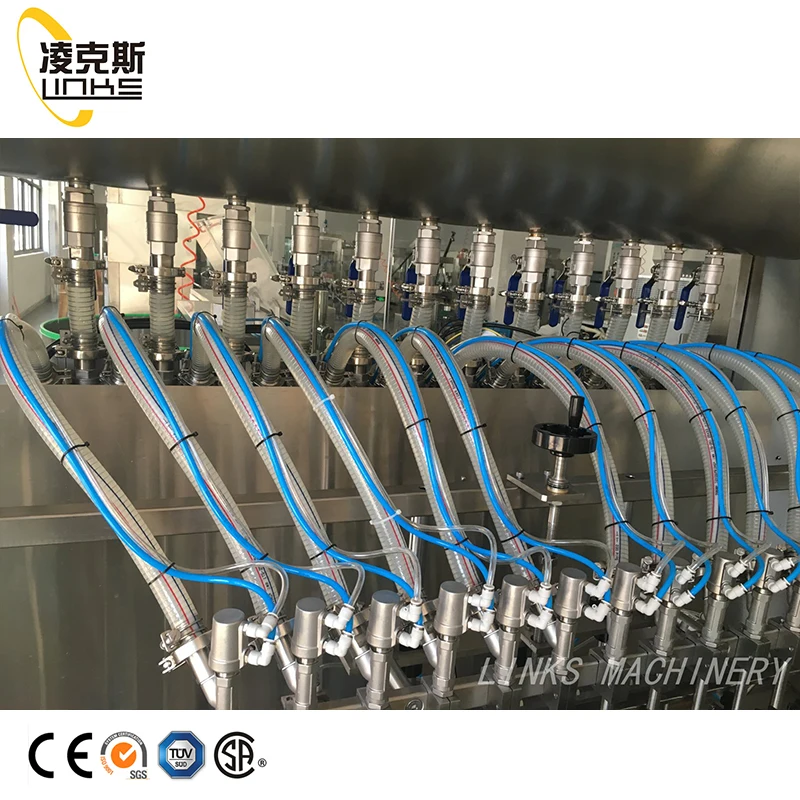

Fully automatic edible oil filling machine and bottle packaging line for vegetable and cooking oils. Ensures precise, efficient filling, capping, and labeling, delivering high-quality packaging for large-scale production.
Project Name: Complete Liquid/Oil Filling Line
|
||||||
Bottle Information |
||||||
Suitable Bottle Material |
PET / Plastic / Glass |
|||||
Suitable Bottle Shape |
Round & Square / Others |
|||||
Suitable Bottle Volume |
500ml to 5000ml |
|||||
Liquid Information |
||||||
Suitable liquid:
|
Cooking Oil
|
Machine Oil
|
Dishwashing Liquid
|
|||
Jam
|
Medicine
|
Others...
|
||||
Packing Information |
||||||
Producing Speed Selection (Based on 500ml) |
2000BPH, 3000BPH, 5000BPH, 7,000BPH,
8,000BPH,12000BPHâ¦â¦
|
|||||
Machines Material |
All material (which touch liquid) adopts SUS304&SUS316 |
|||||
Labels Selection |
PVC & OPP & Adhesive Label ⦠|
|||||
Date Printer Type Selection |
Ink & Laser |
|||||
Packing Type Selection |
Carton |
Film Wrap |
Carton Tray Film Wrap |
|||
Warranty |
12 Months After Installation |
|||||
Customerâs Factory Information |
||||||
Room Temperature |
10-40 degree |
|||||
Room Humidity: |
No Dew |
|||||
Voltage Supplier |
380V, 220V, Special voltage please inform |
|||||
Electrical configuration:
NO. |
Name of parts |
Producing area |
1 |
Programmed controller |
MitsubishiJapan |
2 |
Low-pressure breaker |
Siemens Germany |
3 |
AC electromagnetic contractor |
Siemens Germany |
4 |
AC electromagnetic contractor |
Siemens Germany |
5 |
Heat-break device |
Siemens Germany |
6 |
Multi-continuous electrical device |
Siemens Germany |
7 |
Middle-continuous electrical device |
Omron Japan |
8 |
Inducing on-off |
AUTONICS USA |
<1>Controlled by microcomputer PLC programmable,equip with photo electricity transduction and pneumatic action.
<2>This machine with high automatization,adjust convenient,when change bottle size or replacing the filling volume,only need to change the parameters in the touch screen.
<1>Applied to cap inner screwing column or normal cap in pesticide, chemical, wine, drink (no carbonated) and grease.
<2>It can be matched with conveying bottle machine, filling machine and other equipments together, also can be used in conveying bottle machine stand-alone.
<1>Flat conveyor is the main connection between filling machine and each secondary packaging machines, the conveyor with drain water collect plate and cable bridge.
<2>Energy saving. High efficient. Adapt to customer factory layout
<3>Special lubrication system, keep products clean, health, safety
<1>The Air conveyor is fixed on the floor,and fan installed on the top of the conveyor
<2>The air filter is located at each entrance of the fan to prevent dust from blowing into the bottle. The bottle is held in the neck of the conveyor belt and conveyed by blowing power into the filling machine.
<3>All are made of stainless steel SUS 304 /316.
Bottle Blowing Machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.
Optional choiceï¼
1.PVC label stick labeling machine
2.Heat shrink sleeve labeling machine
3.OPP Hot melt labeling machine
Optional choiceï¼
1.PE film shrink wrapping machine
2.Half-tray shrink wrapping machine
3.Carton box packaging machine
Zhangjiagang Links Machinery Co., LTD.is located in Zhangjiagang City, Jiangsu Province. It has international standard workshop more than 8000 square meters. It is one of the professional beverage packaging machinery manufacturers with collecting research, development and manufacturing. It is China's best beverage machinery equipment suppliers. As liquid packaging industry enterprise, the drink service network is all over the world more than 50 countries and regions, products are widely used in drinks, flavor, cosmetic, beer, milk, and pharmaceutical industries.
Sea worthy packing(Wooden case package).
1/Installation and Training
We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.The engineers will install the machine according to the prior layout and make it in the best condition. They will train your technicians how tomaintain the machine and treat different failures.
2/About the bottle drawing, workshop layout, and labels design
We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.(Workshop need customer to provide the size of factory)
3/Quality guarantee and after-sales service
Our company provides comprehensive after-sales service and technical support,We promise that our goods are all new and did detailed test before delivery.Our machines has a one-year warranty, and once problems arise, we will supply the fastest and most professional solution.
