Top-quality heat shrink packing machine designed for PE film applications. Delivers efficient, uniform, and reliable shrink wrapping, ideal for protecting and securing products during packaging and transport.

Get a Quote Contact
  • Description
product top quality heat shrink packing machine by pe film-4

+8613616242830
[email protected]
Inquiry
Products Description
Top Quality Heat Shrink Packing Machine by PE Film details

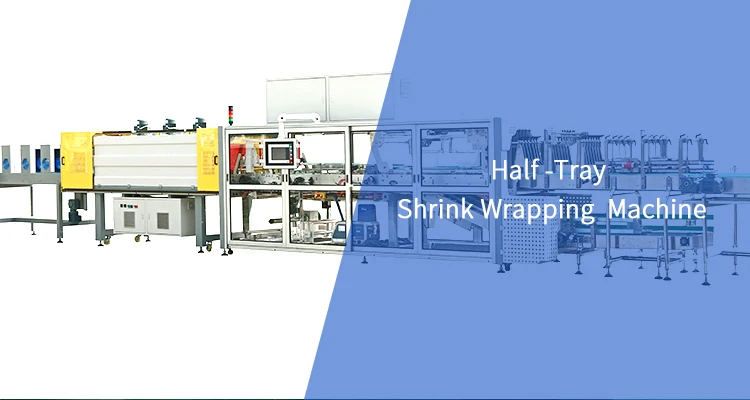

Half -Tray Shrink Wrapping Machine

Pecially designed for bundle packing of beer, drinks and beverage, fruit juice, bottle water, dairy, condiment and so on with
bottom support. During the product forward conveying process, it can automatically group into package, so as to save time and enhance packing efficiency.
The color screen has a friendly operation interface, and it is rapid for parameter setting and convenient for human-machine
communication, operation and control.
Adopting air circulation technology, the shrinkage chamber features rational structure, heat insulation, high precision for
temperature control and better packing effects.
Top Quality Heat Shrink Packing Machine by PE Film factory
Half -Tray Shrink Wrapping Machine
Model
LKBS20ZB
LKBS25Zb
LKBS25ZT
LKBS35ZT
LKBS60ZT
Machine Dimension（mm）
11210*1530*2700
 12440*1530*2700
 16920*1800*2700
 18424*1800*2700
21465*1800*2700
Shrinkage Tunnel Dimension（mm）
2500*700*450
 2500*700*450
 2500*700*450
 2500*700*450
3000*700*450
Max Package Dimension（mm）
W=180-300，L=240-420
 W=180-300，L=240-420
 W=180-300，L=240-420
 W=180-300，L=240-420
W=180-300，L=240-420
Packing Speed
20pcs/min
25pcs/min
25pcs/min
35pcs/min
60pcs/min
Transfer Belt Width
610mm
610mm
 610mm
 610mm
686mm
Work Voltage/Power
380V 60KW
380V 66KW
380V 60KW
 380V 66KW
380V 95KW
Work Air Pressure
0.6-0.8Mpa
 0.6-0.8Mpa
 0.6-0.8Mpa
 0.6-0.8Mpa
0.8Mpa
Air Consumption
200NL/min
 150NL/min
 150NL/min
 150NL/min
300NL/min
Total Weight
5500Kg
 5500Kg
 5500Kg
5500Kg
6000Kg
Details Images

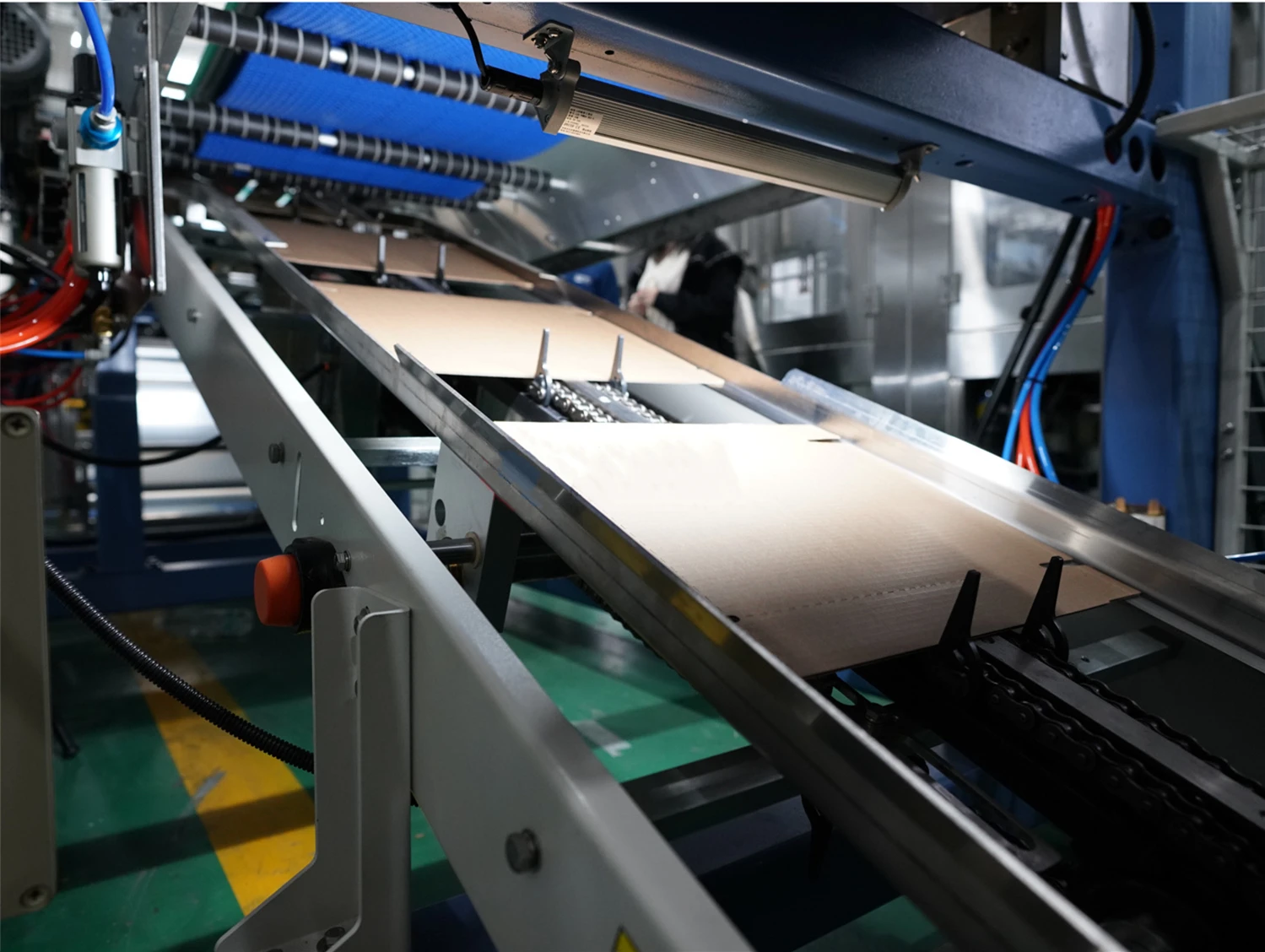

Carton box conveying
It can suit for different bottleneck and bottle combination tray.

Top Quality Heat Shrink Packing Machine by PE Film factory
Top Quality Heat Shrink Packing Machine by PE Film factory

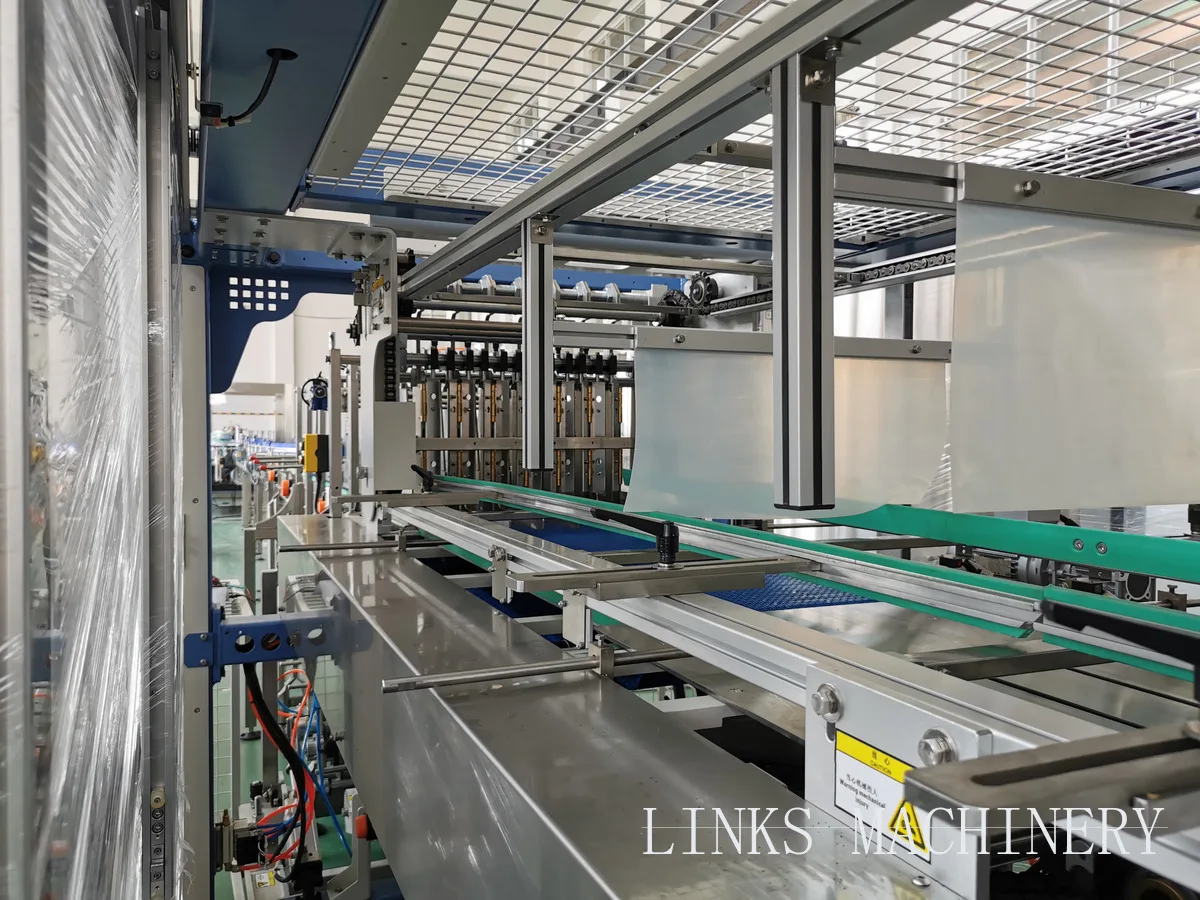

Buffer conveyor belt conveyor chain.
The mineral water film charter machine has its own buffering transportation. When designing the mineral water pipeline transportation, we need to consider changing the film, that is, when the PE film is used up, ensure that the front filling line continues to run, so it is necessary to configure more shots in the front section of the film charter Conveyor chain, used to buffer bottles. By estimating the approximate film changing time, you can calculate how much area of ​​the multi-beat conveyor chain needs to be used.
Cooling and Shaping Channel.
Half -Tray Shrink Wrapping Machine with enhanced cooling and shaping channel, which can be used to quickly shape the product, which is convenient for storage and transportation.
Top Quality Heat Shrink Packing Machine by PE Film manufacture
Top Quality Heat Shrink Packing Machine by PE Film details
Finished Products
Top Quality Heat Shrink Packing Machine by PE Film supplier

Glass bottles

Suitable : Beer, wine, brandy, vodeka
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Top Quality Heat Shrink Packing Machine by PE Film supplier

Plastic bottles

Suitable: Water, juice, soft drink etc Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Top Quality Heat Shrink Packing Machine by PE Film factory

Tins & cans

Suitable : Daily chemical products
Bottle Type : Round / Square / Unique
Shrink film : PE, PP, PVC, POF etc..
Top Quality Heat Shrink Packing Machine by PE Film factory
Top Quality Heat Shrink Packing Machine by PE Film manufacture

Soft drinks line

Like Carbonated beverage , soda water ,energy drinks ... Capacity :1000bph~20000bph
Top Quality Heat Shrink Packing Machine by PE Film factory

Fruit Juice Line

Like Fruit juice ,NFC juice , juice with pulp ... Capacity:500bph~30000bph
Top Quality Heat Shrink Packing Machine by PE Film supplier

Small bottle water line

Like still water / pure water / mineral water  Capacity:1000bph~30000bph
Top Quality Heat Shrink Packing Machine by PE Film manufacture
Top Quality Heat Shrink Packing Machine by PE Film factory
Top Quality Heat Shrink Packing Machine by PE Film manufacture
Top Quality Heat Shrink Packing Machine by PE Film manufacture
